MASTER Cut 2500 Professional Saw Table & Workstation - Heavy Duty Woodworking Bench for DIY Projects & Home Workshops

Product Description

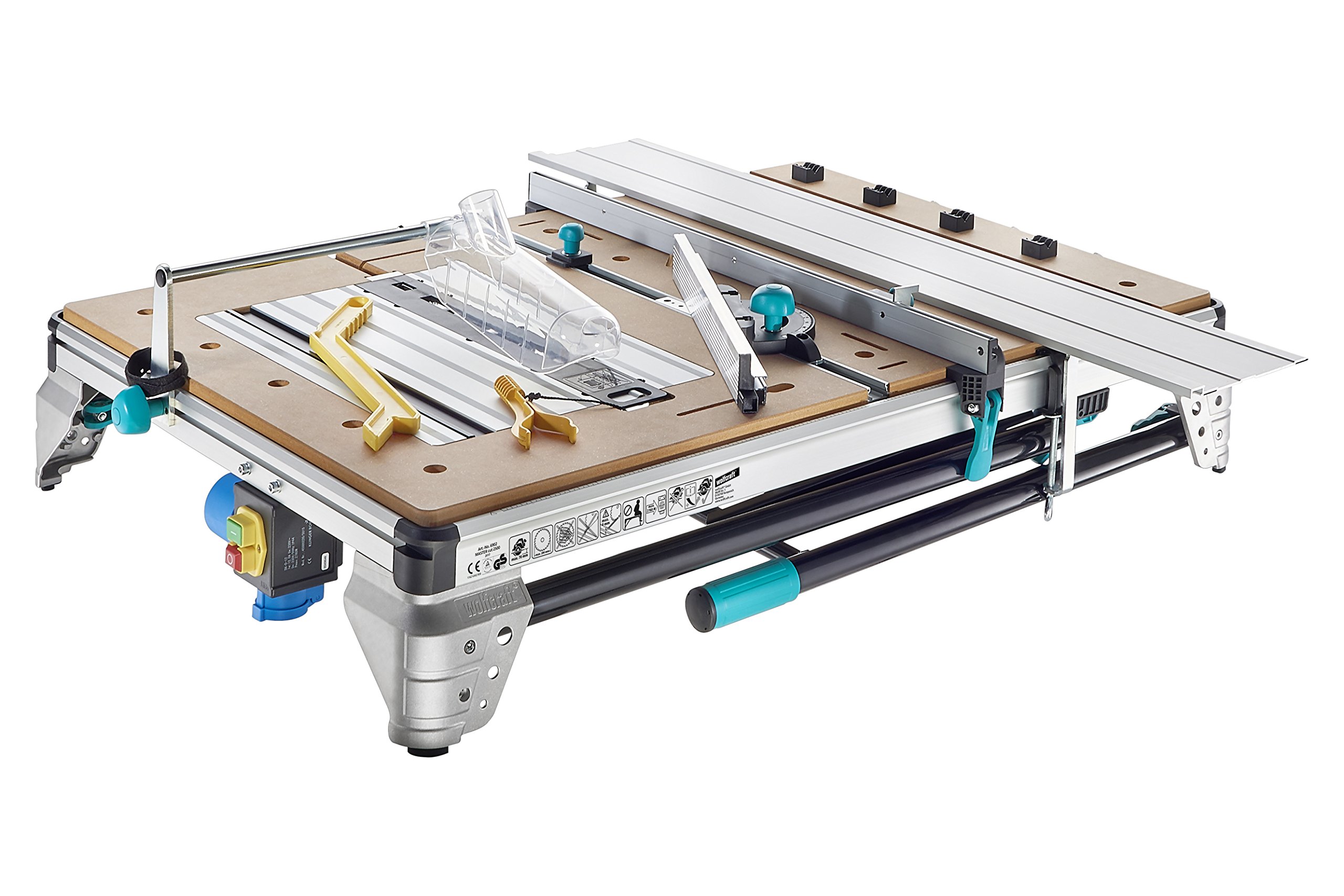

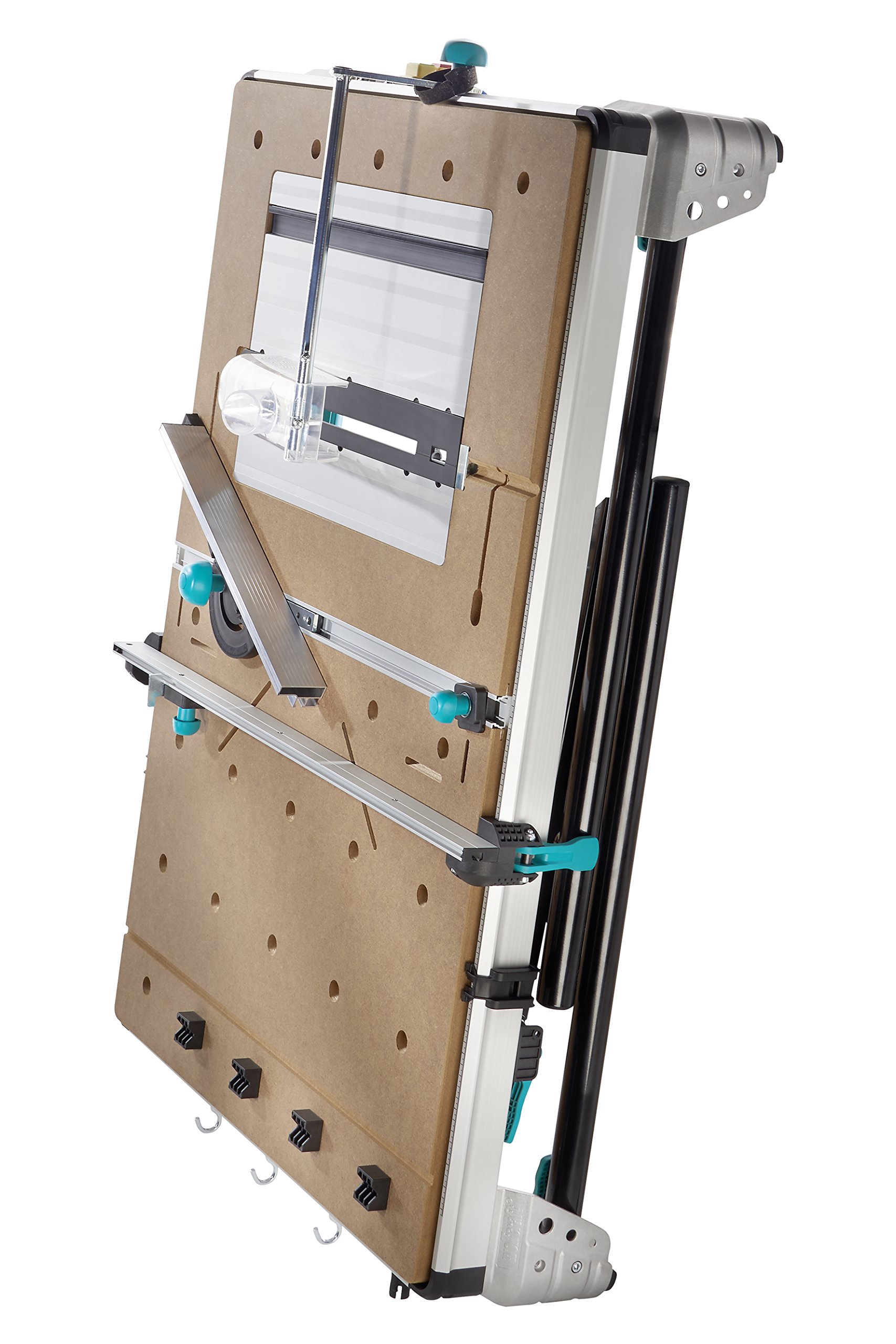

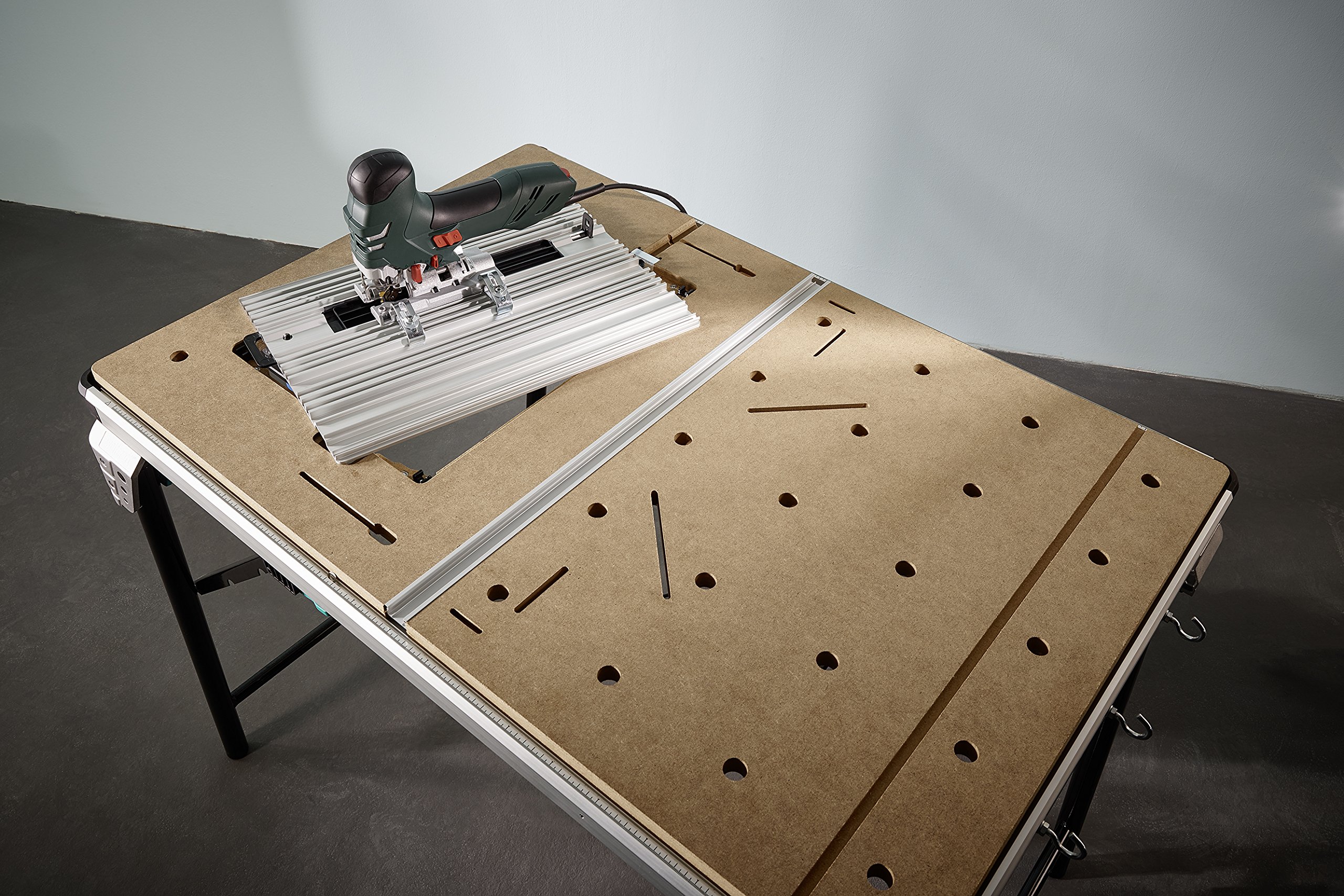

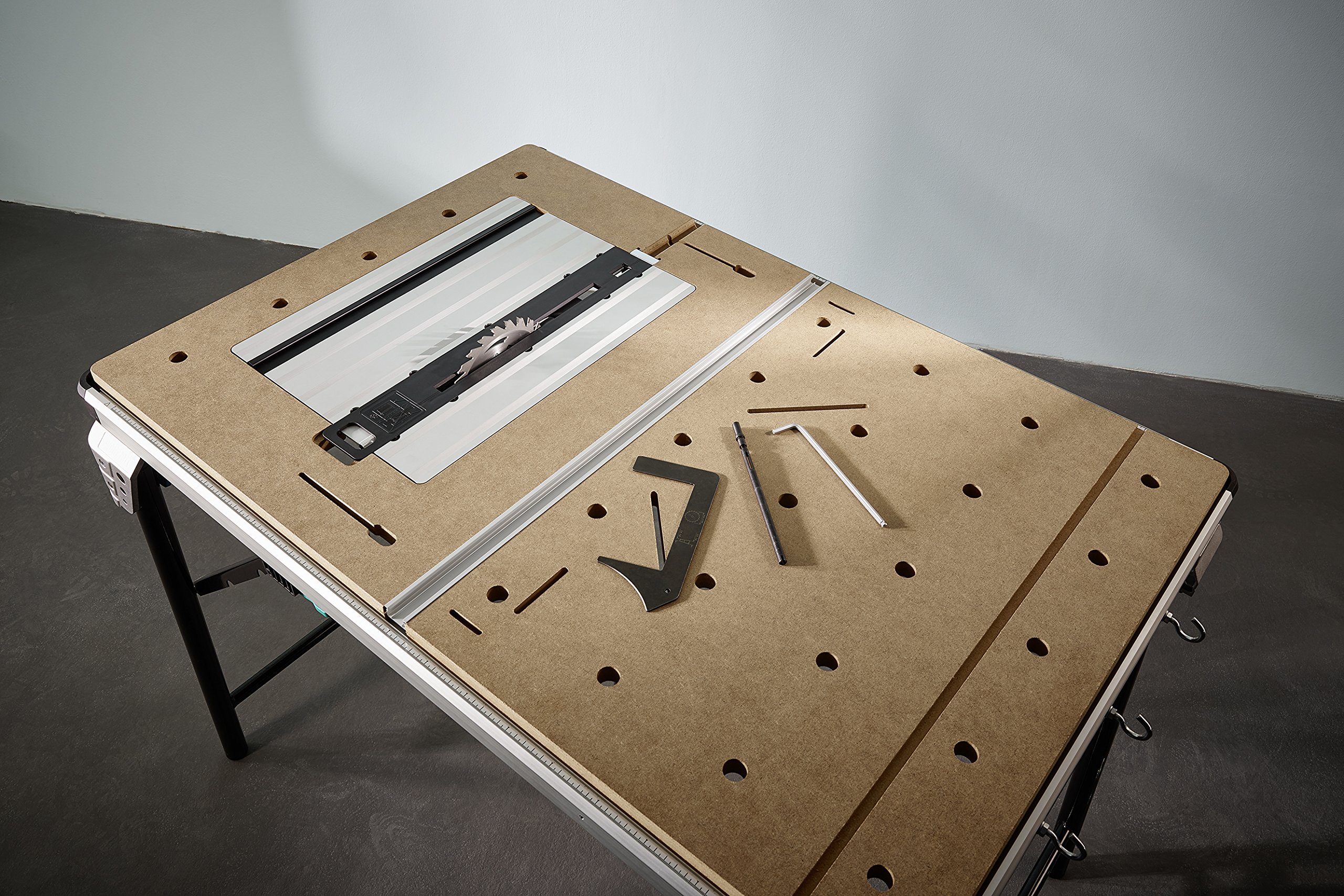

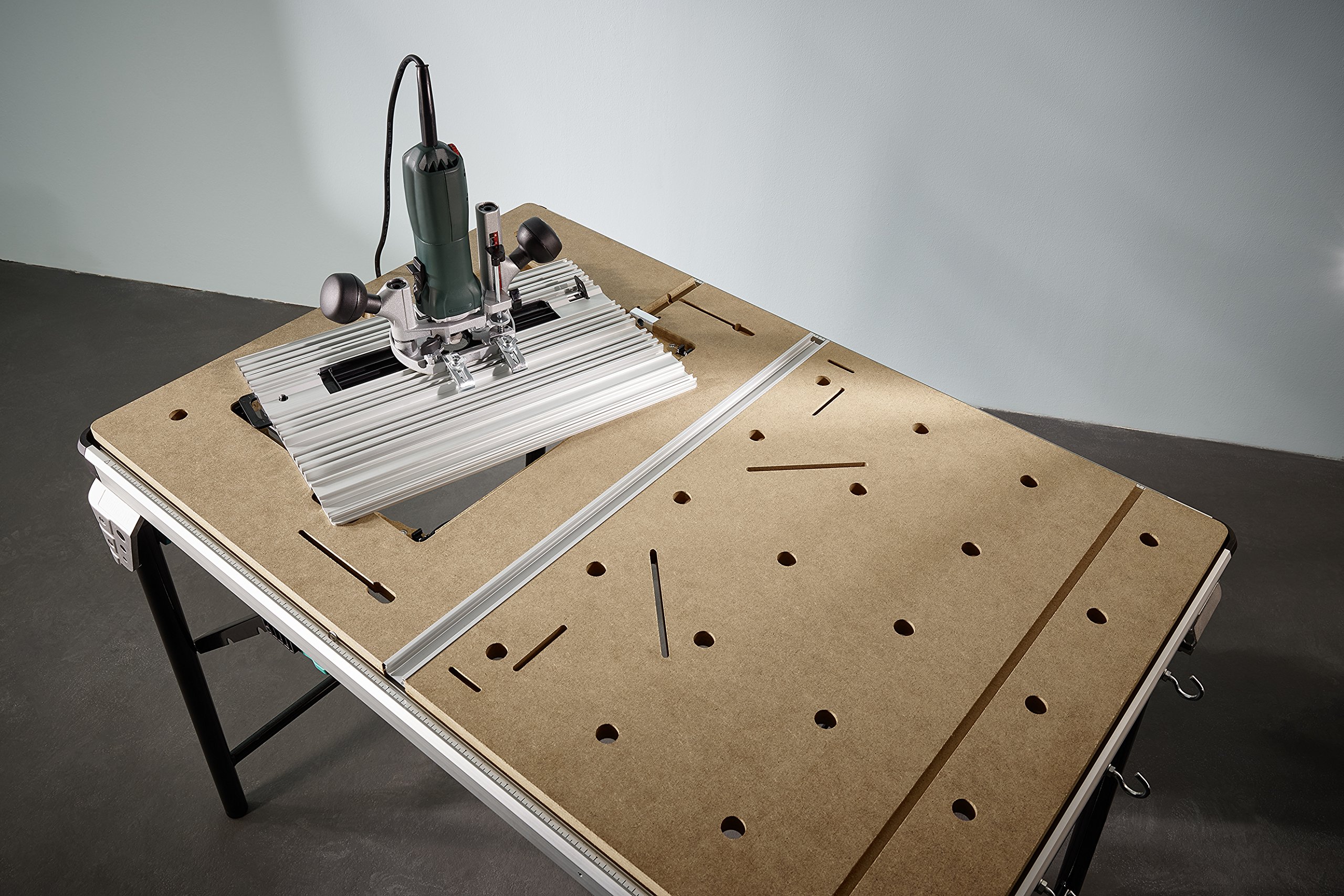

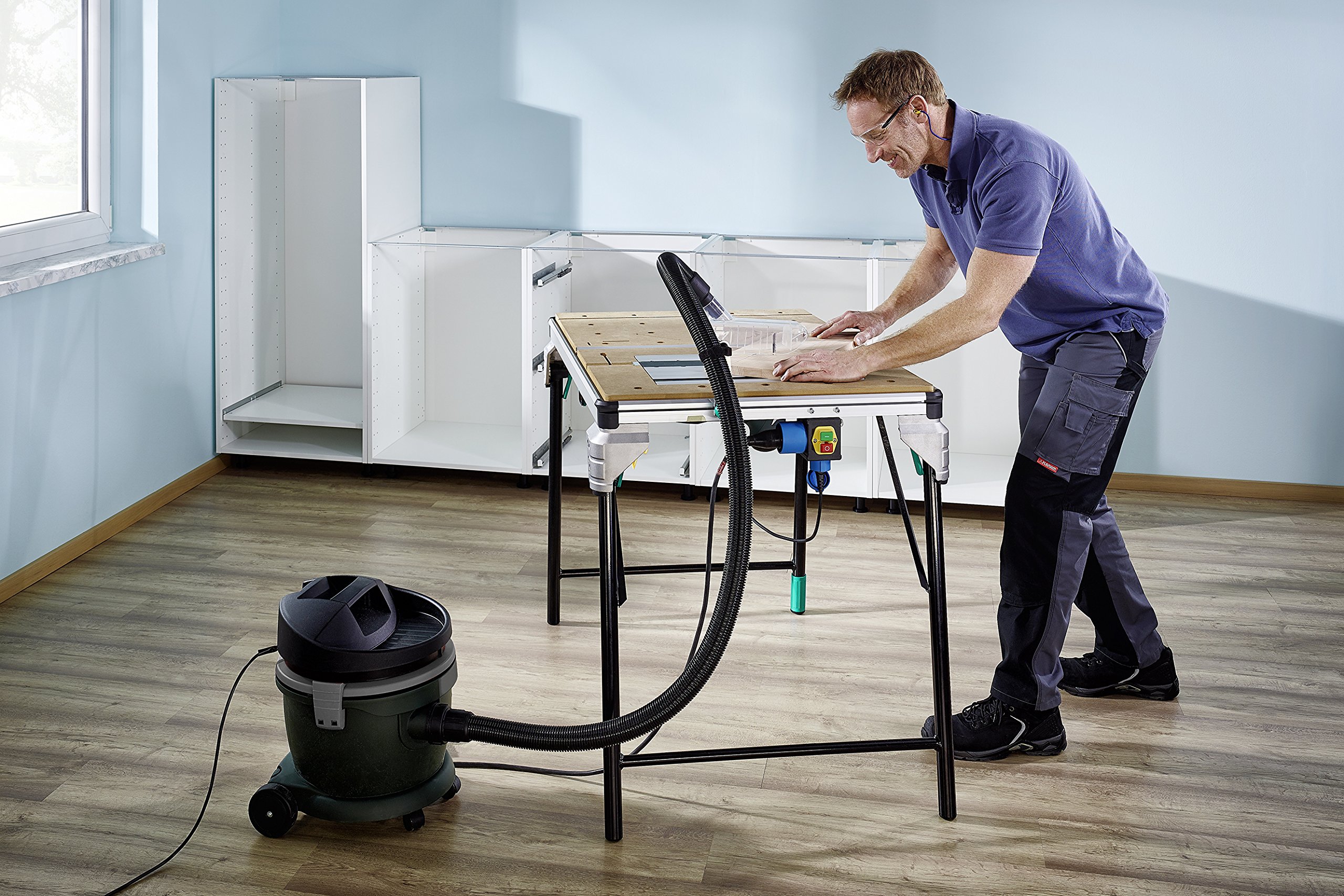

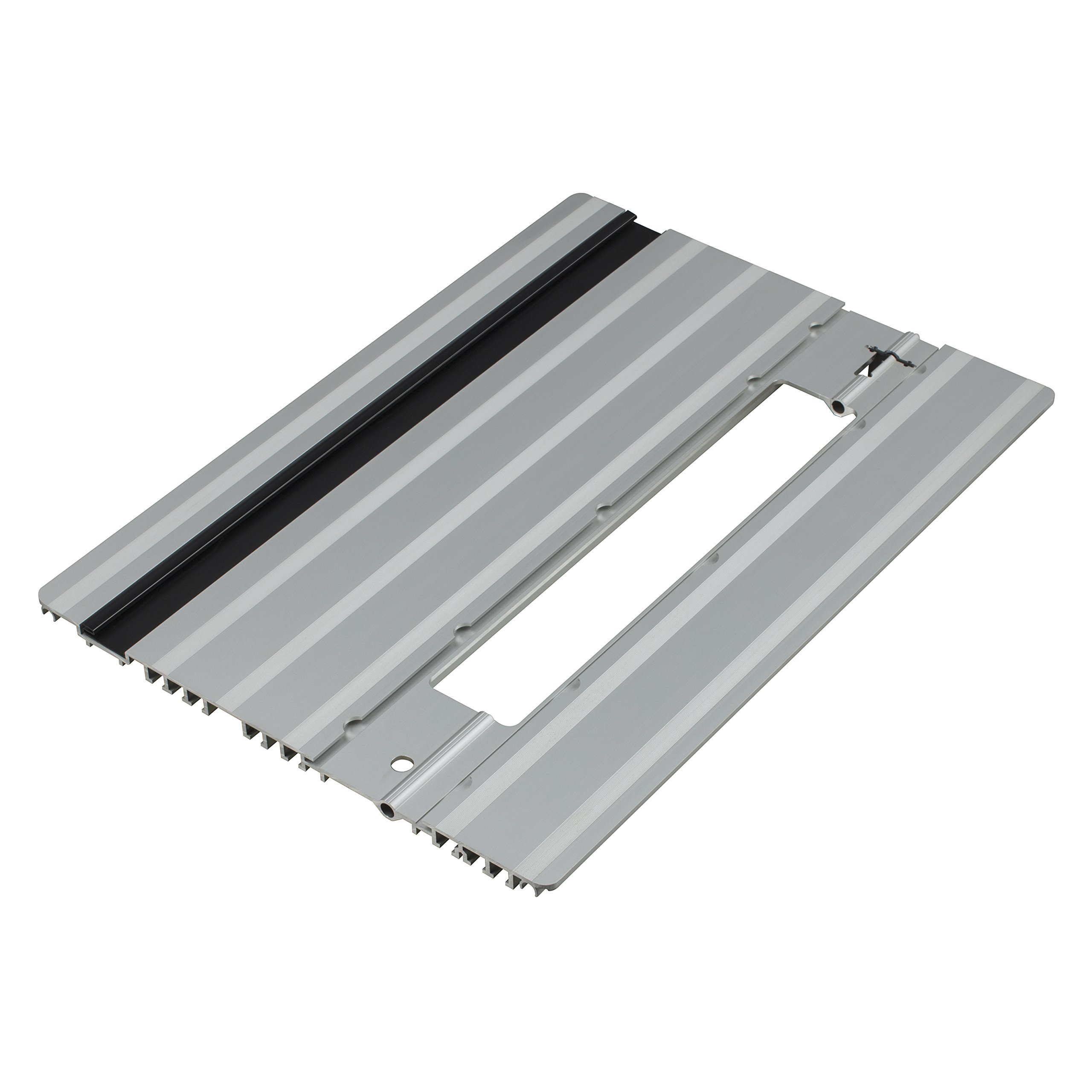

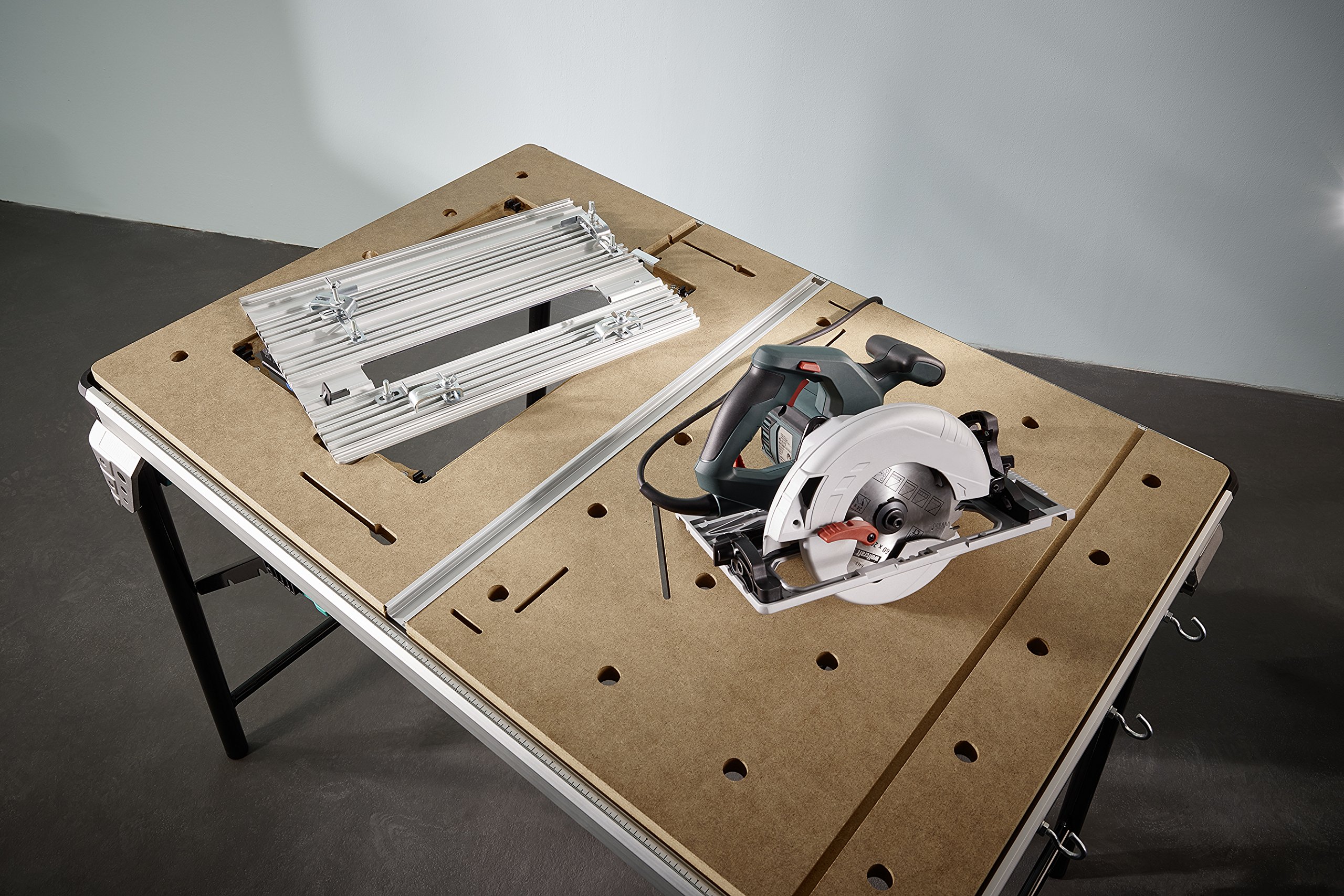

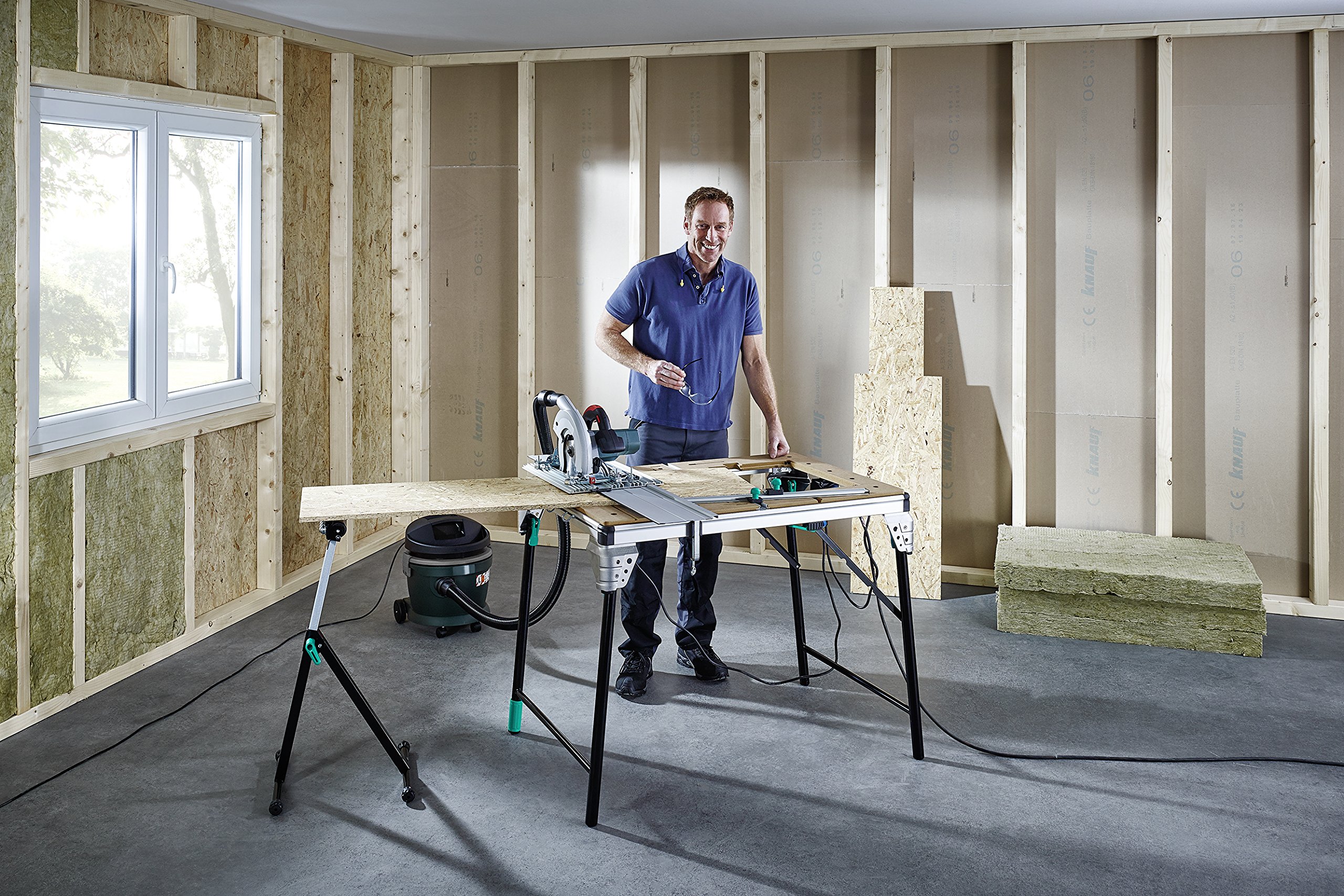

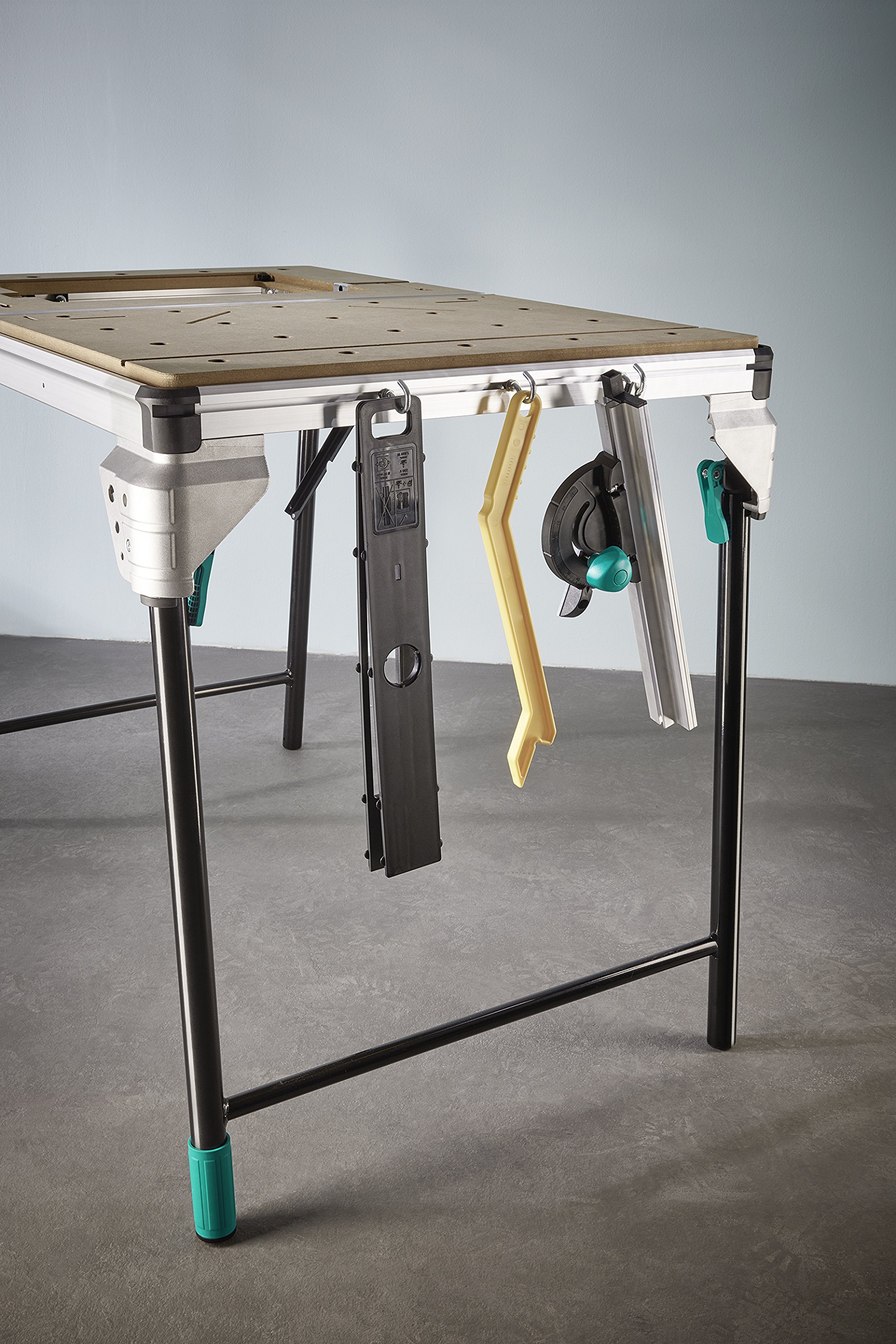

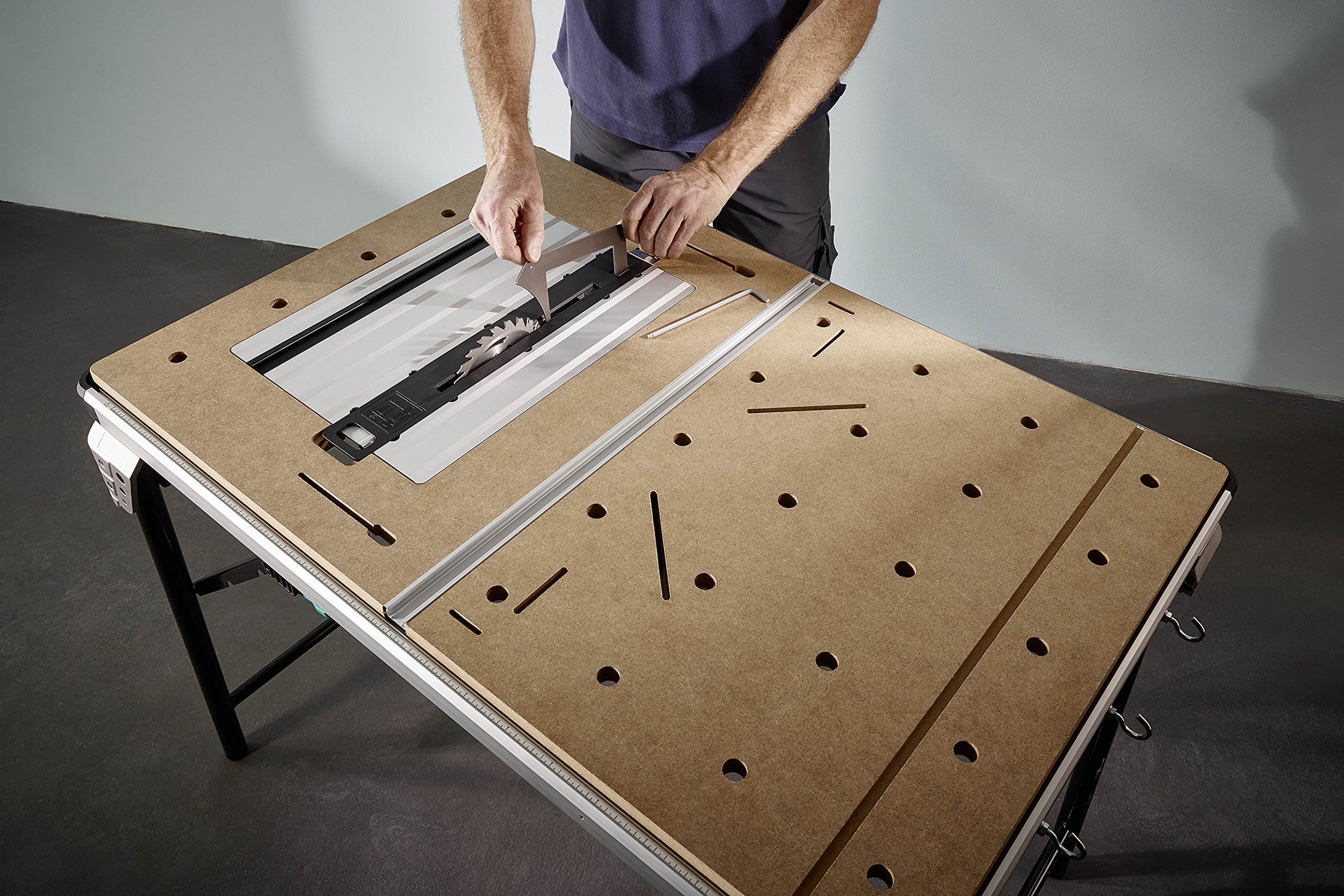

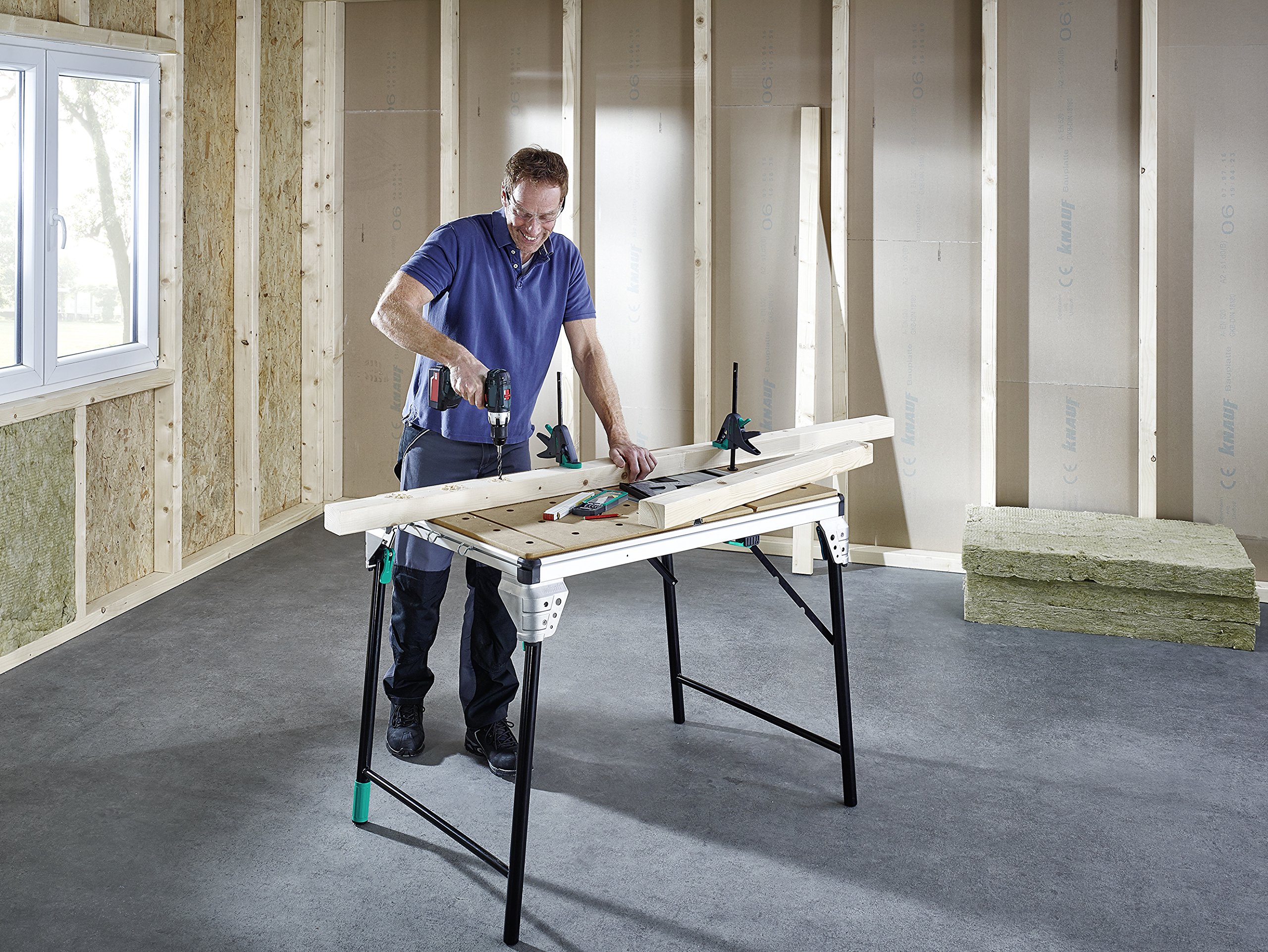

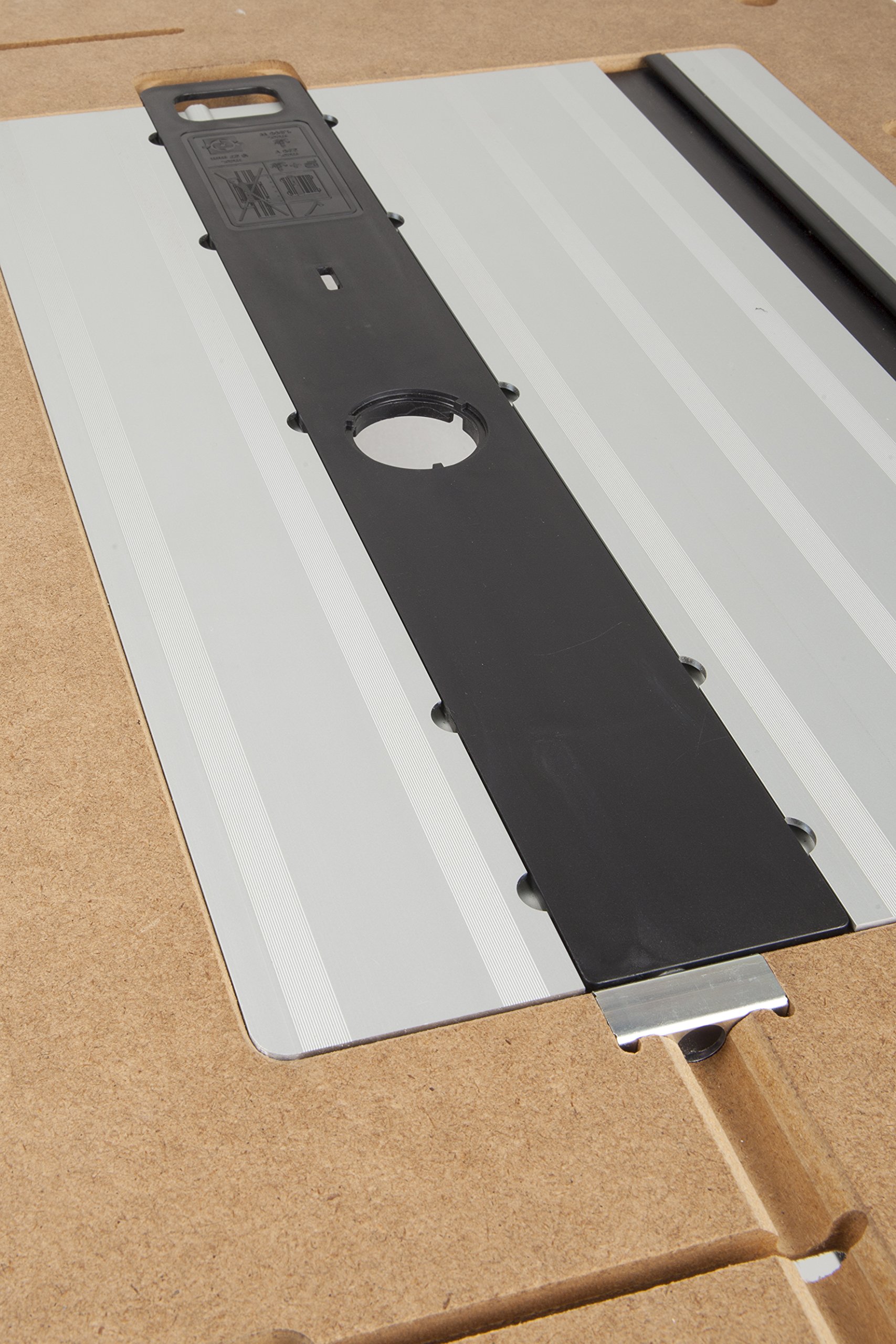

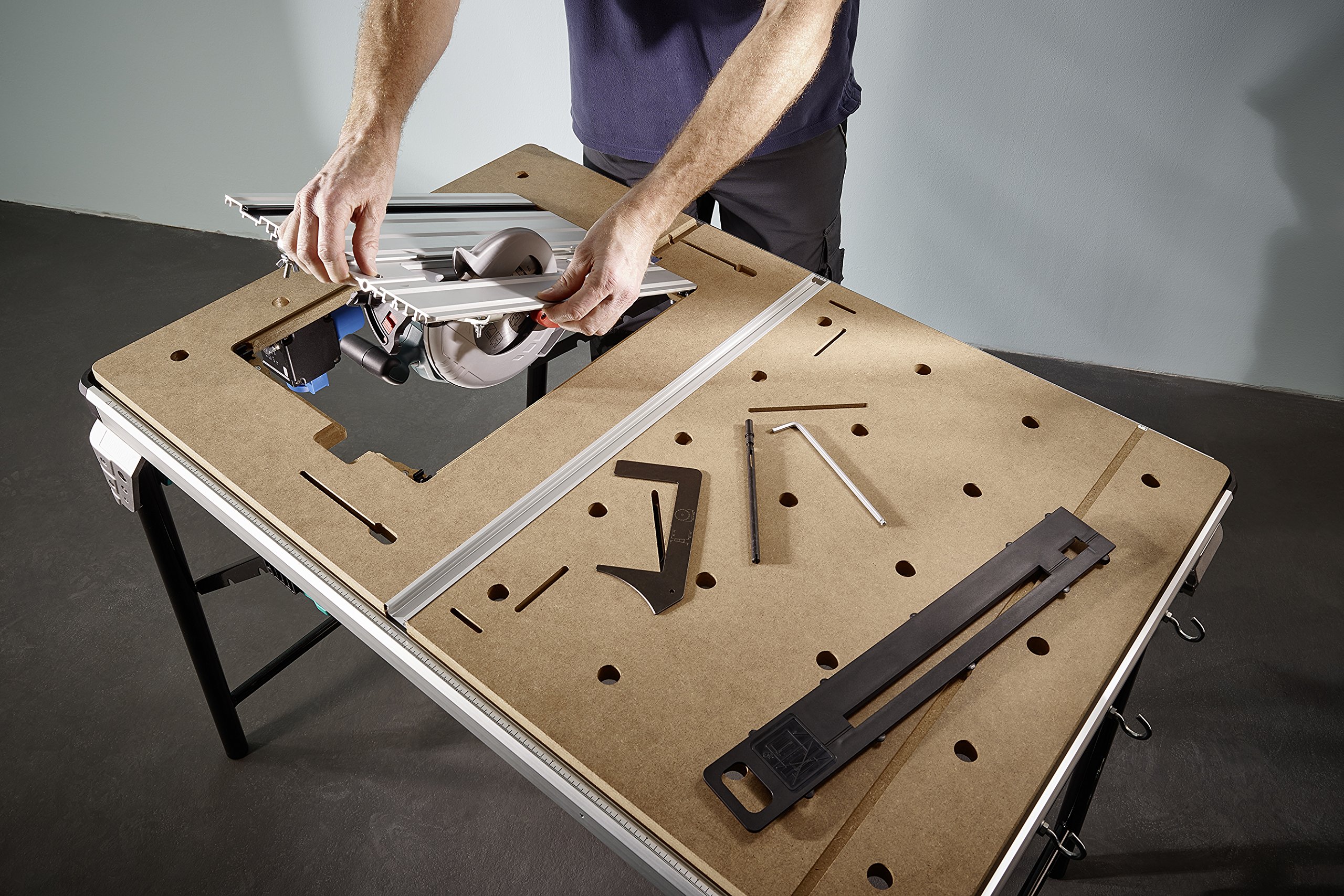

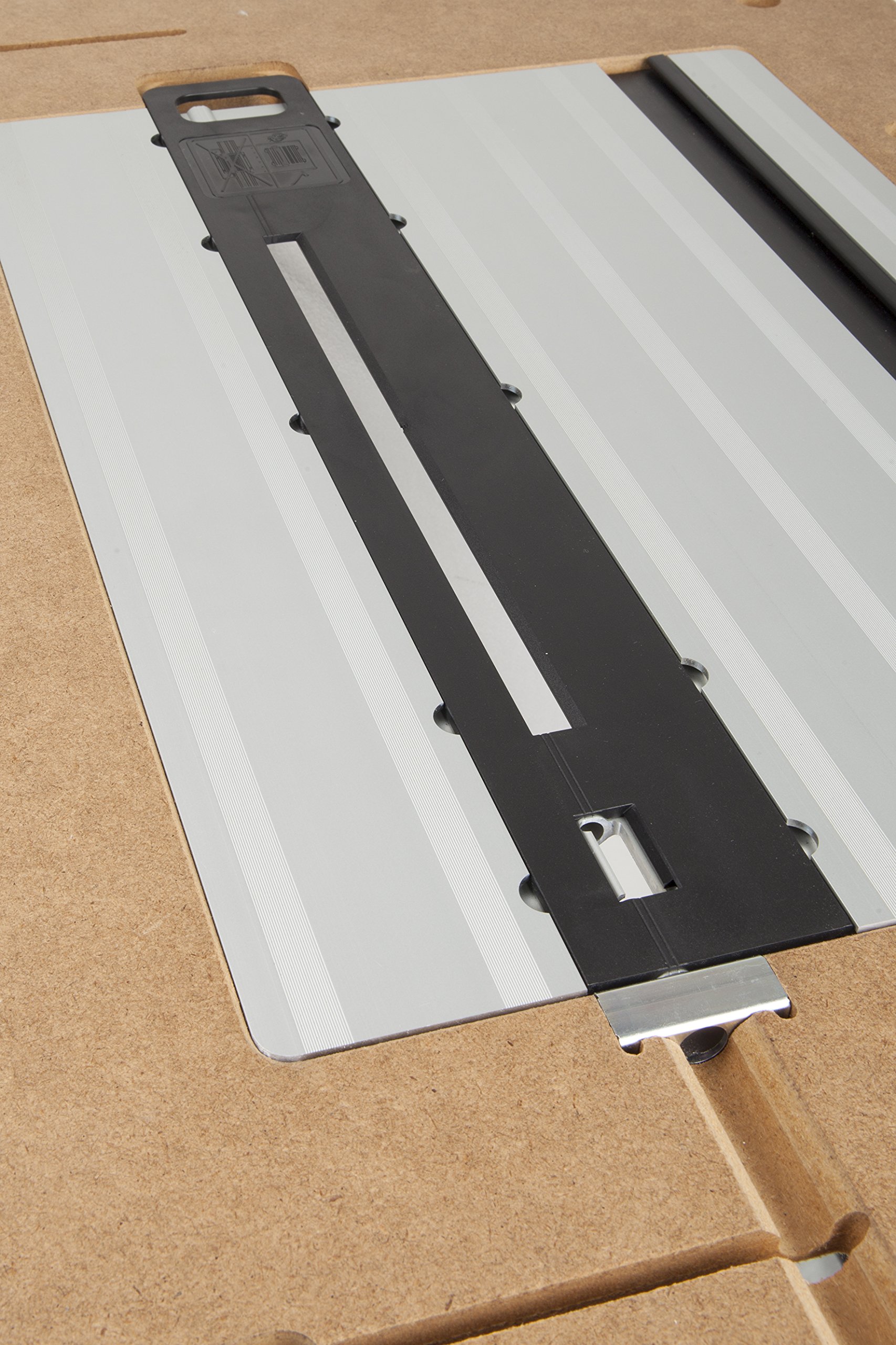

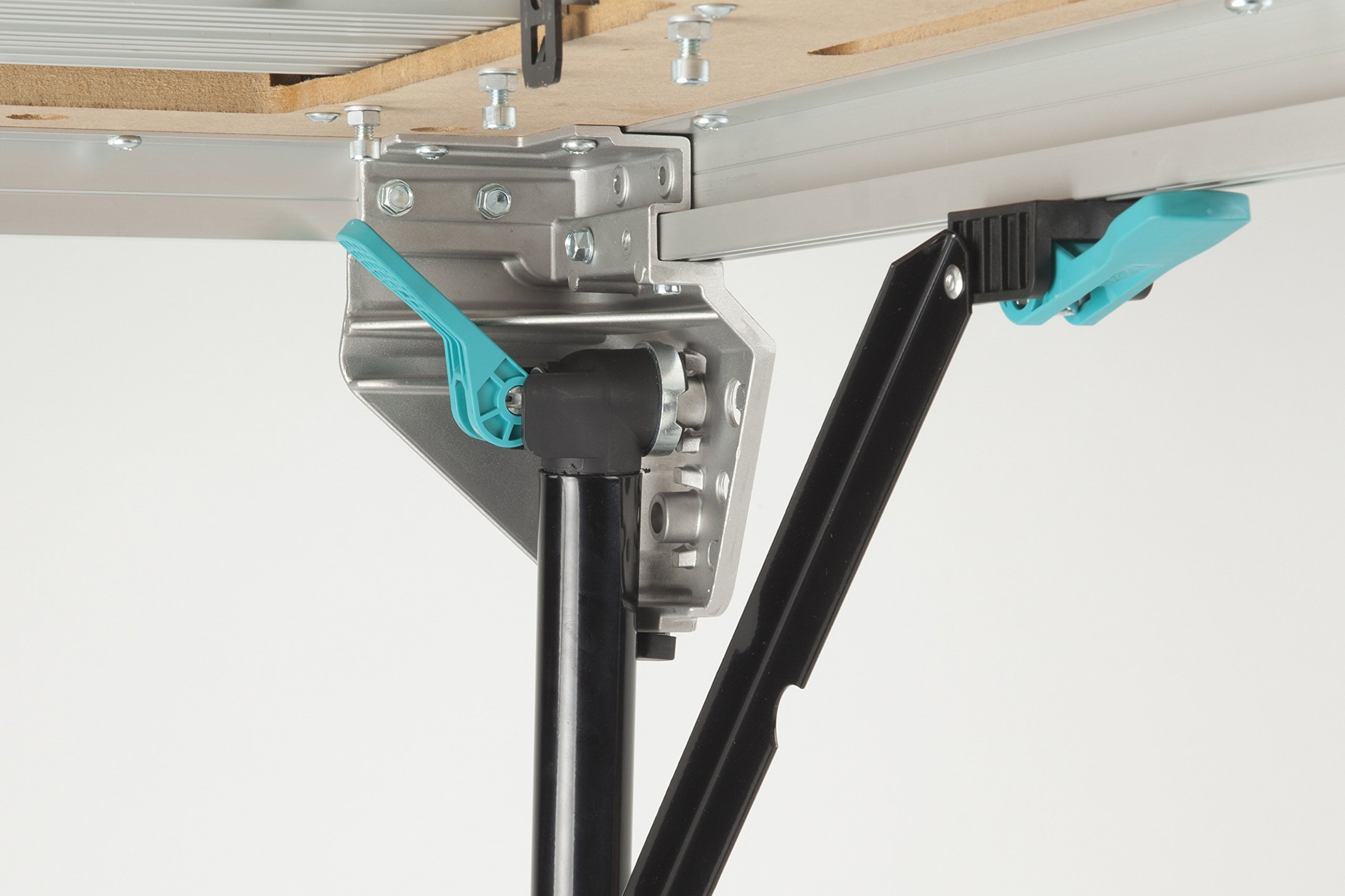

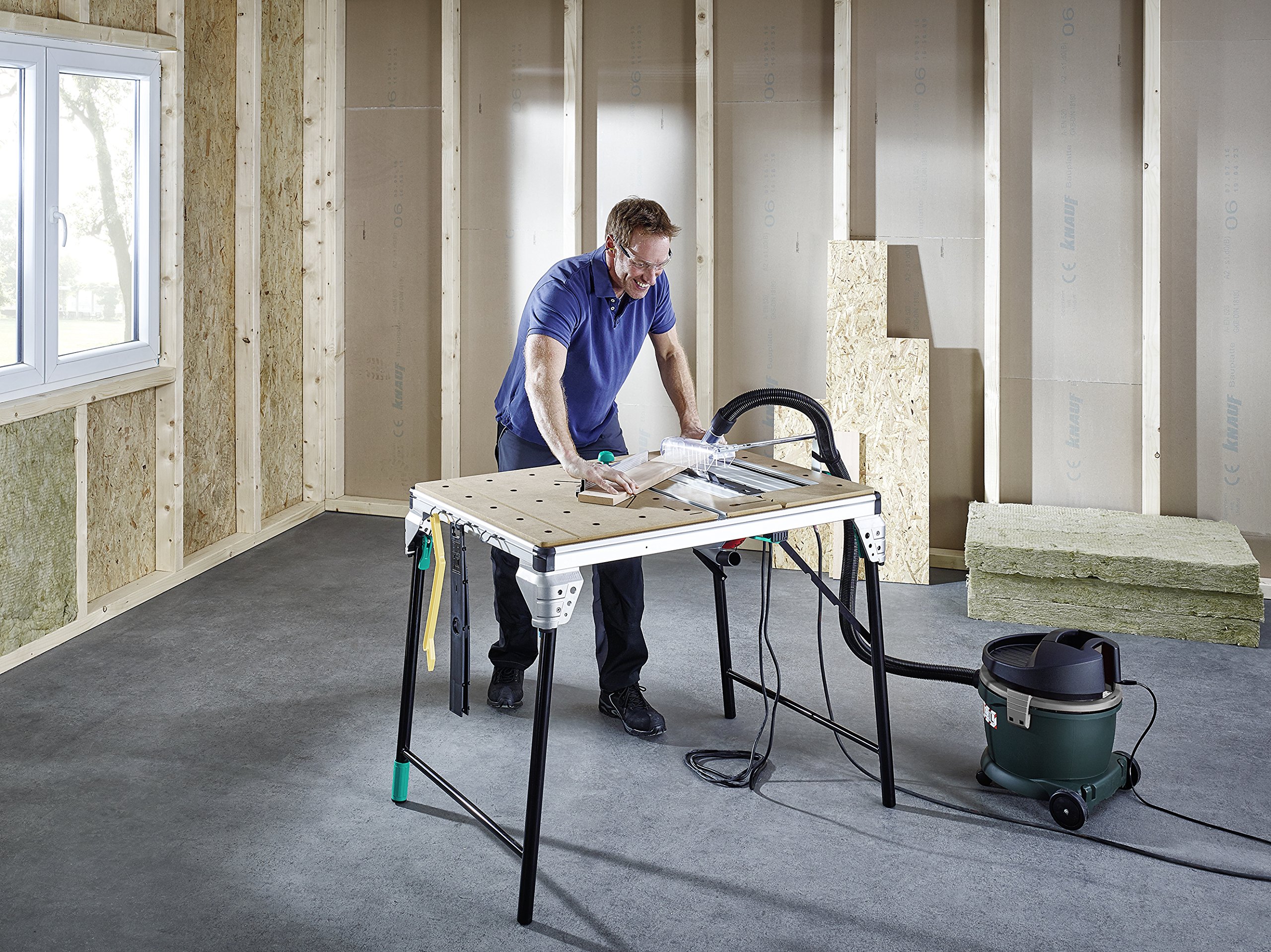

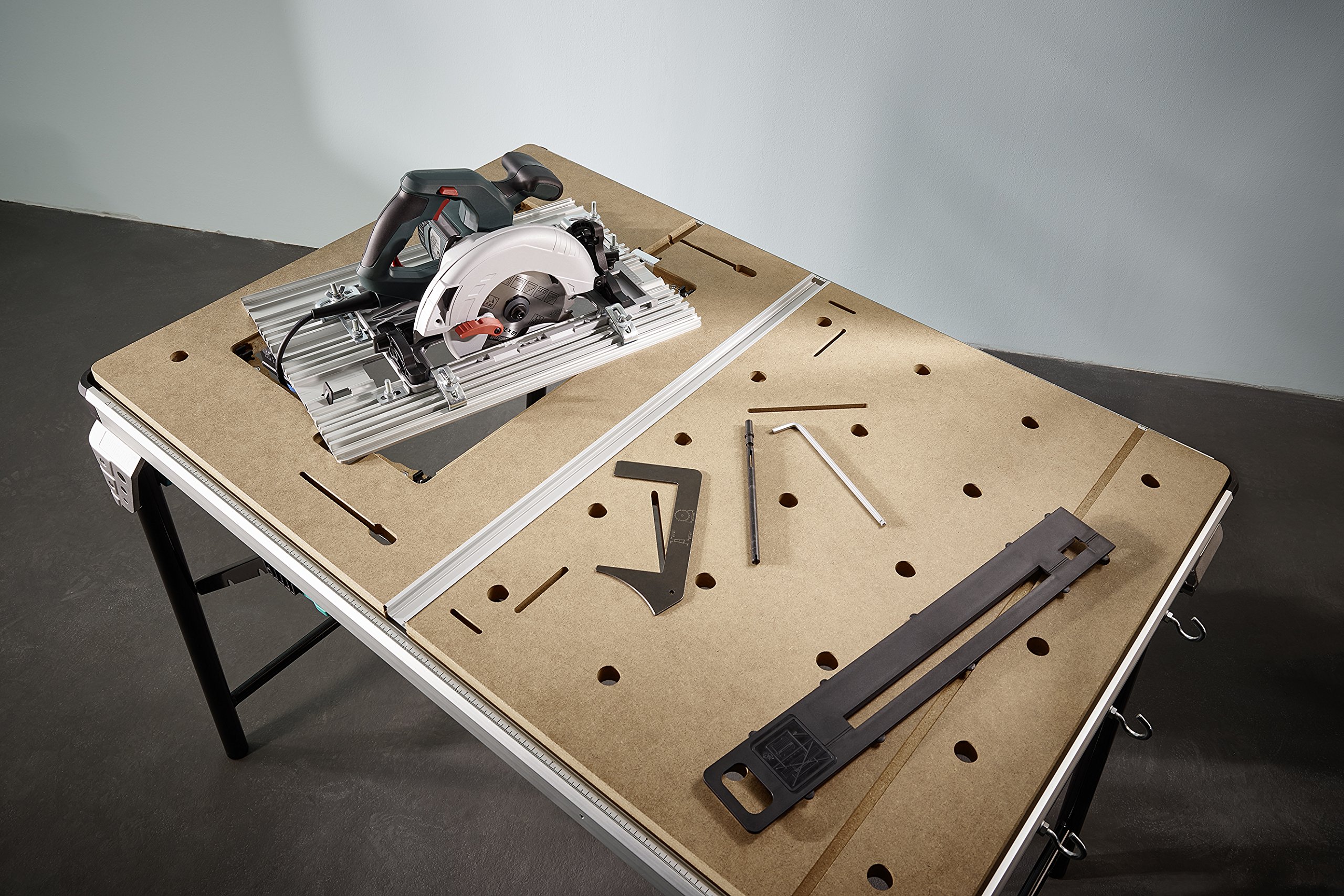

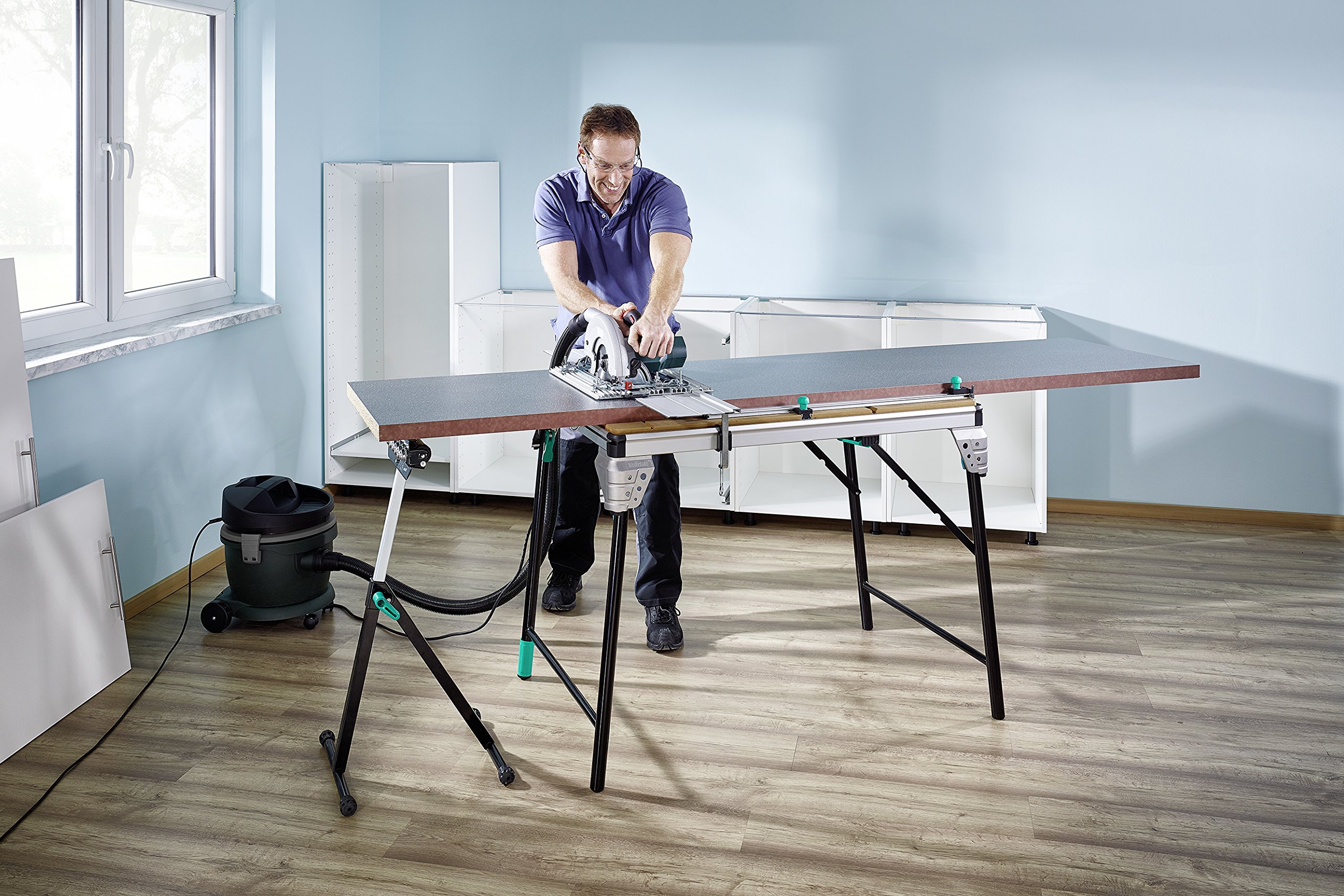

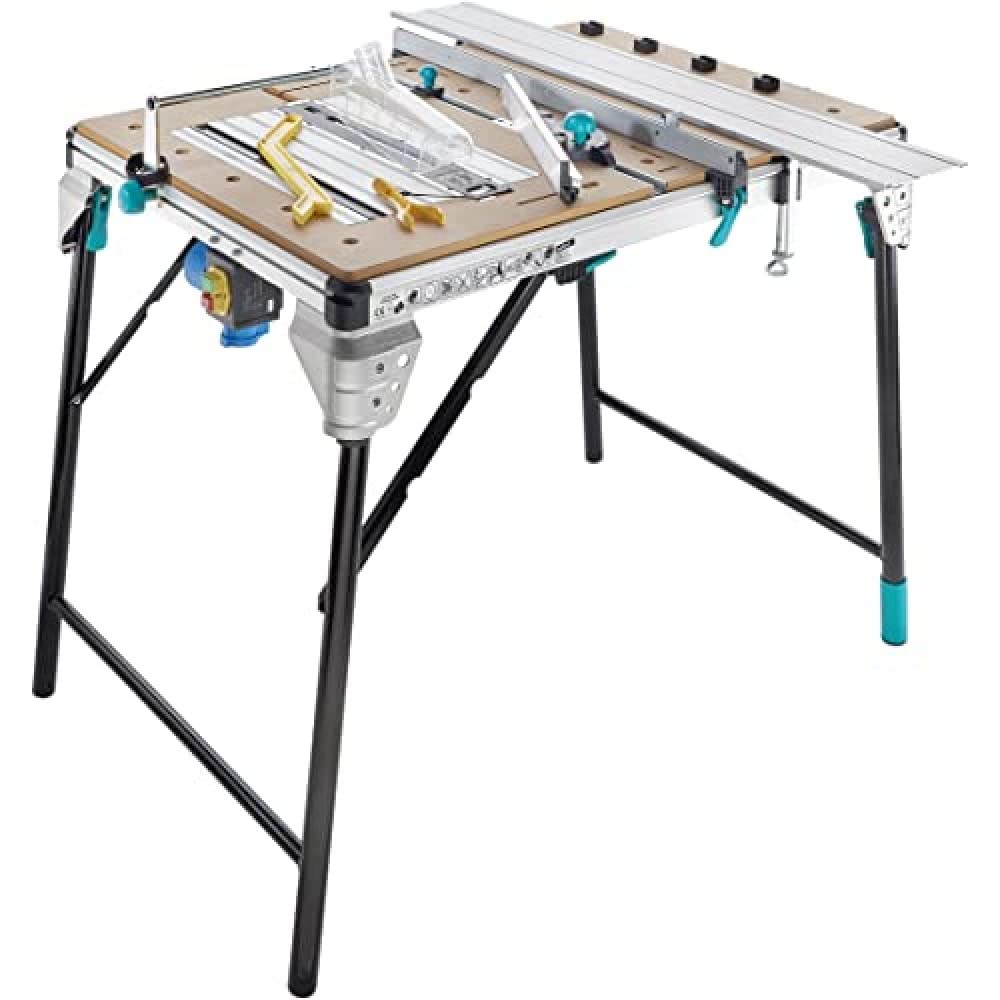

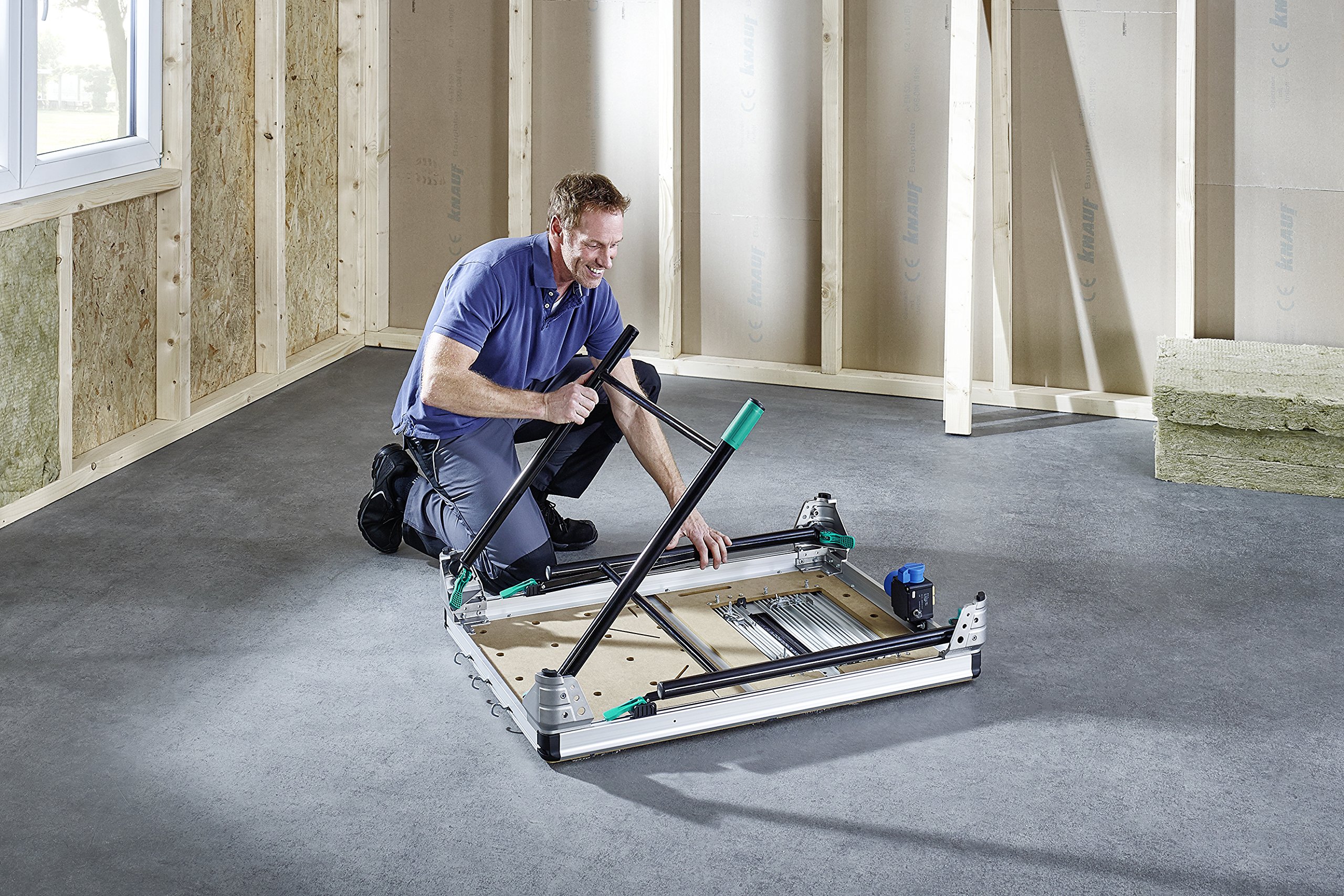

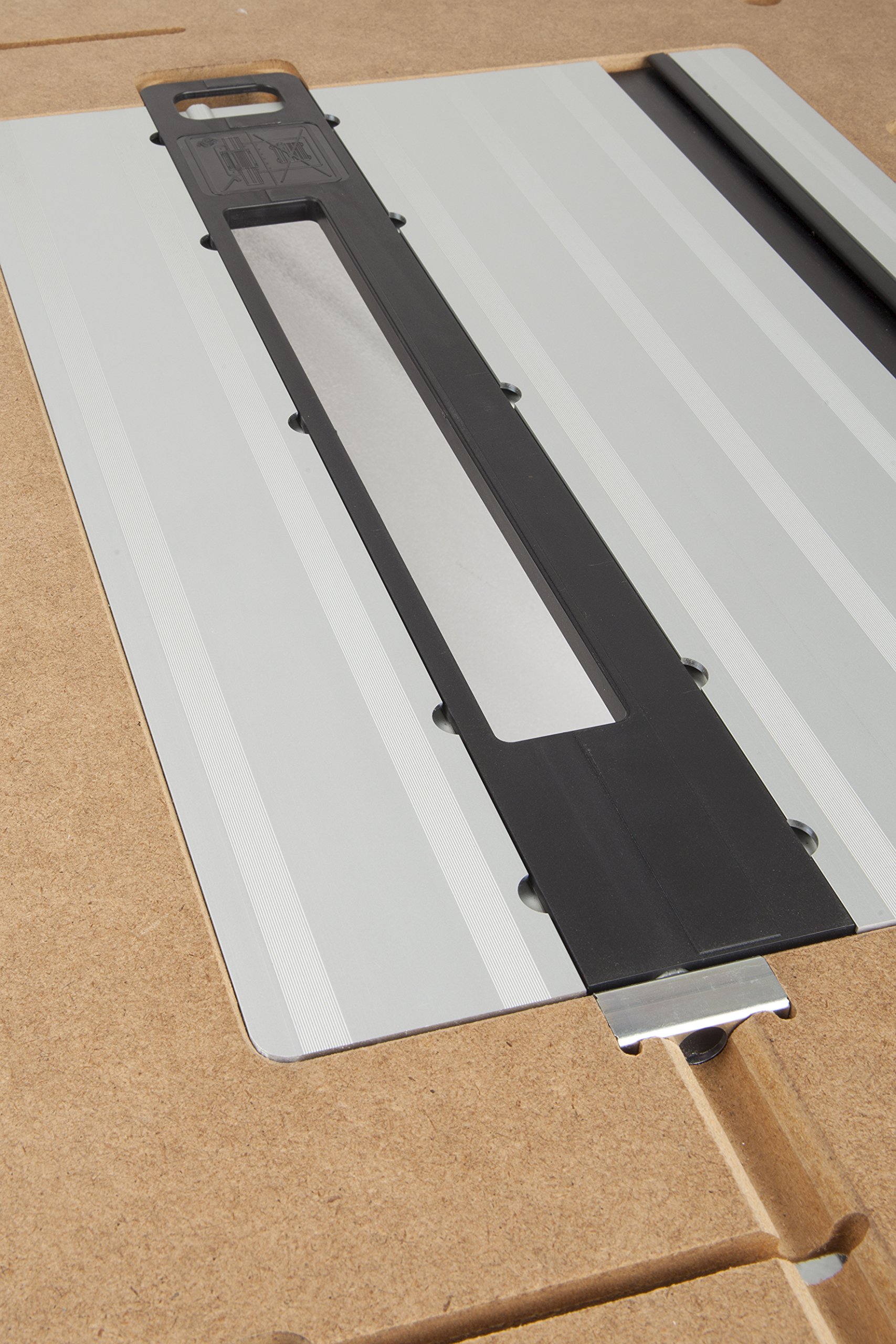

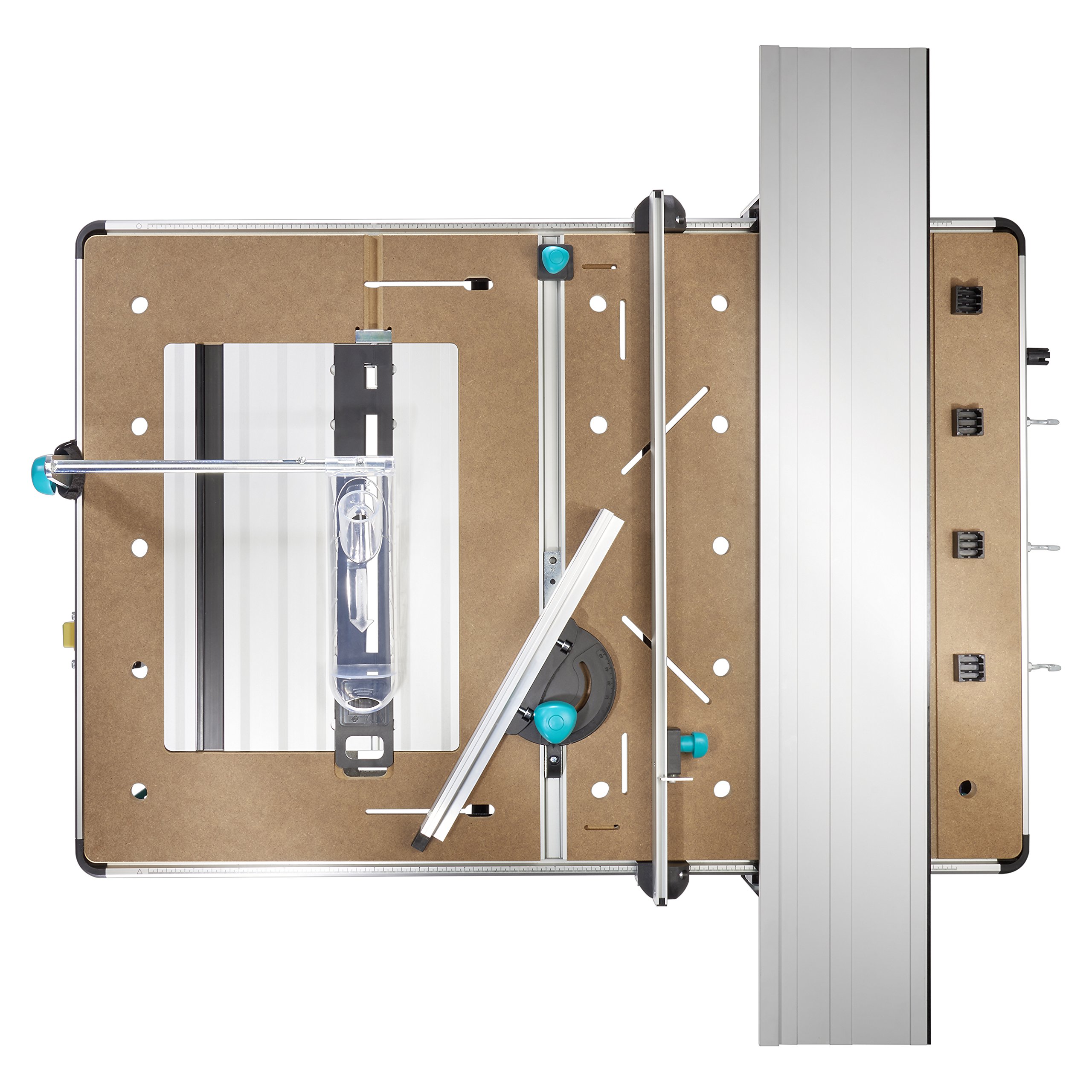

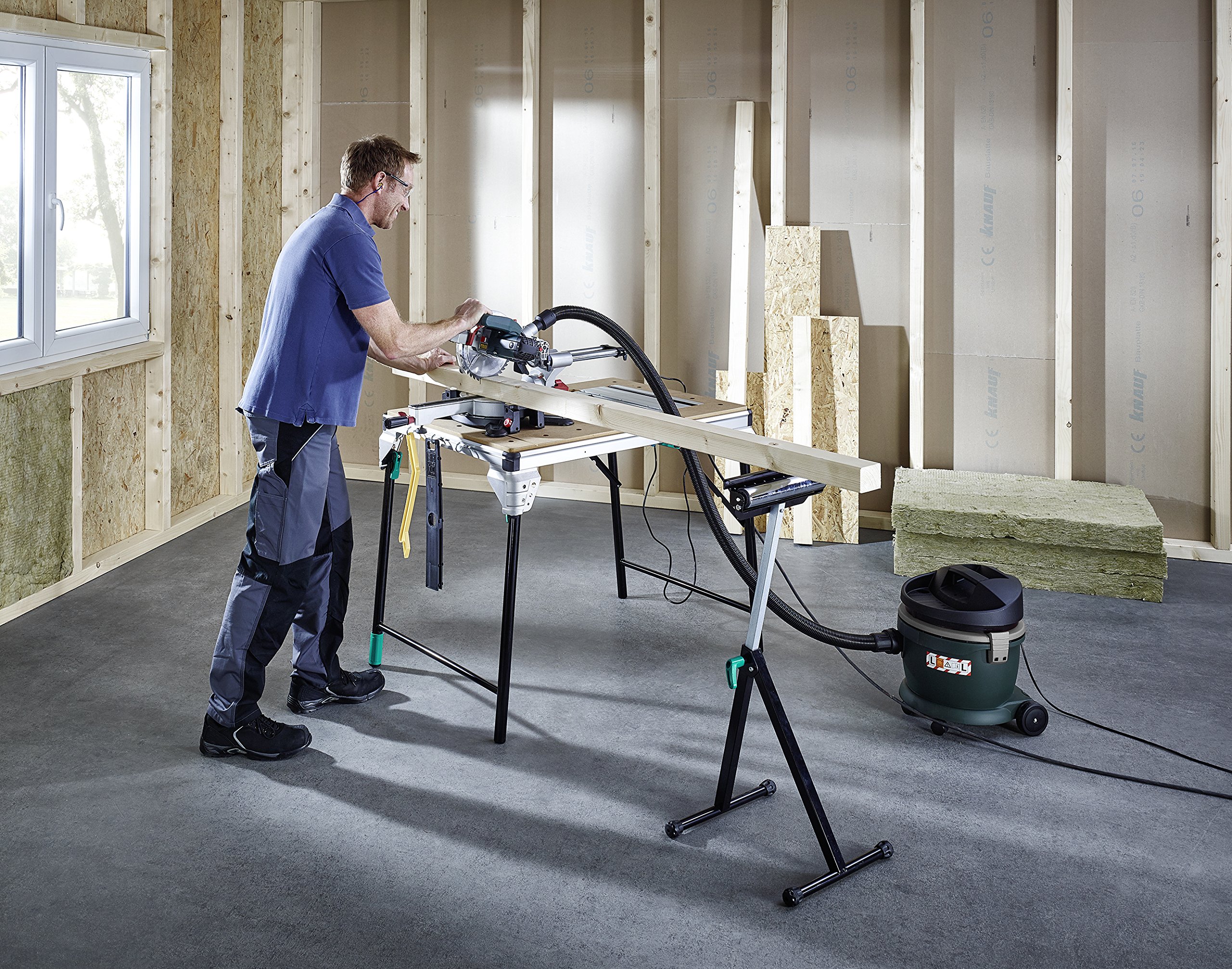

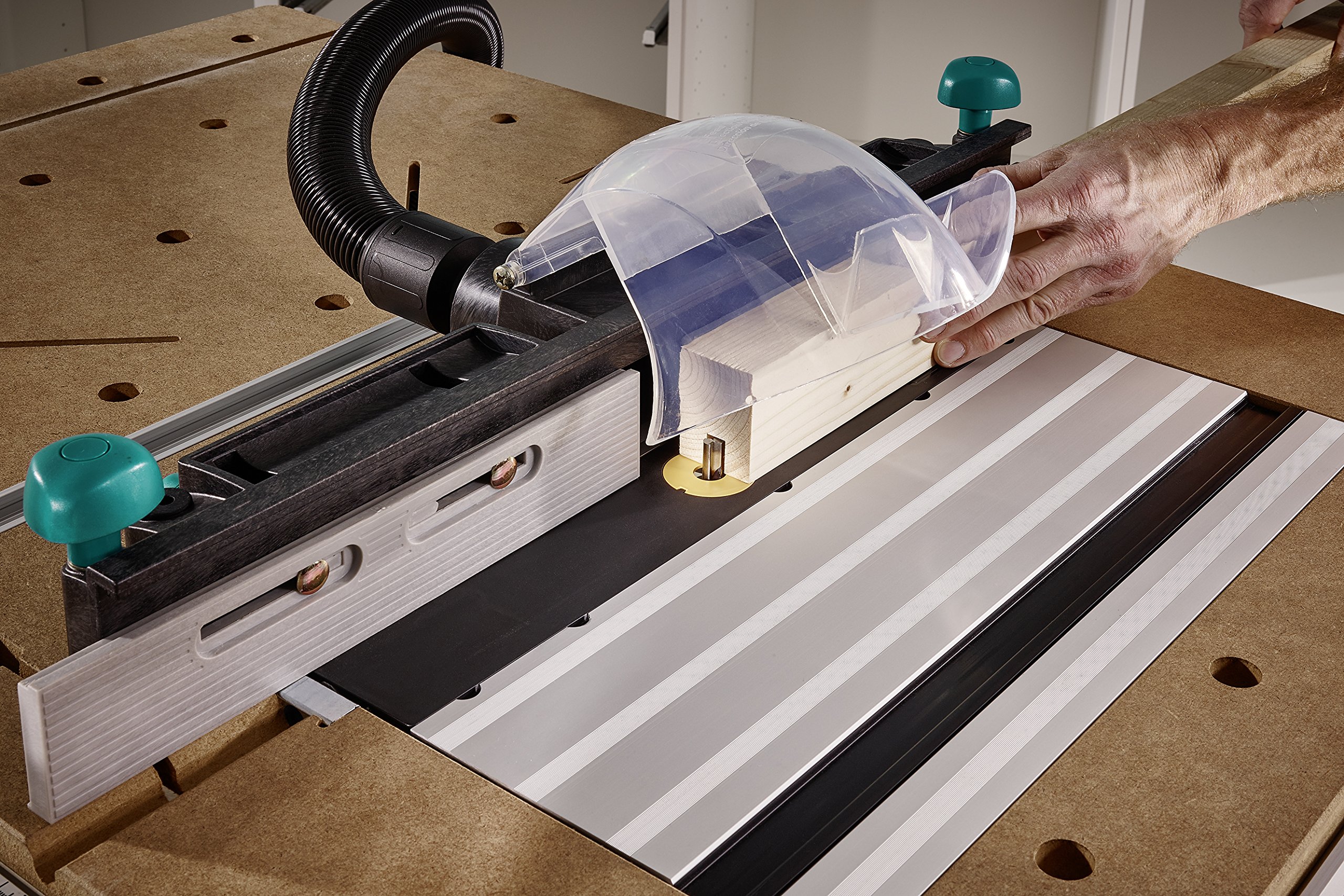

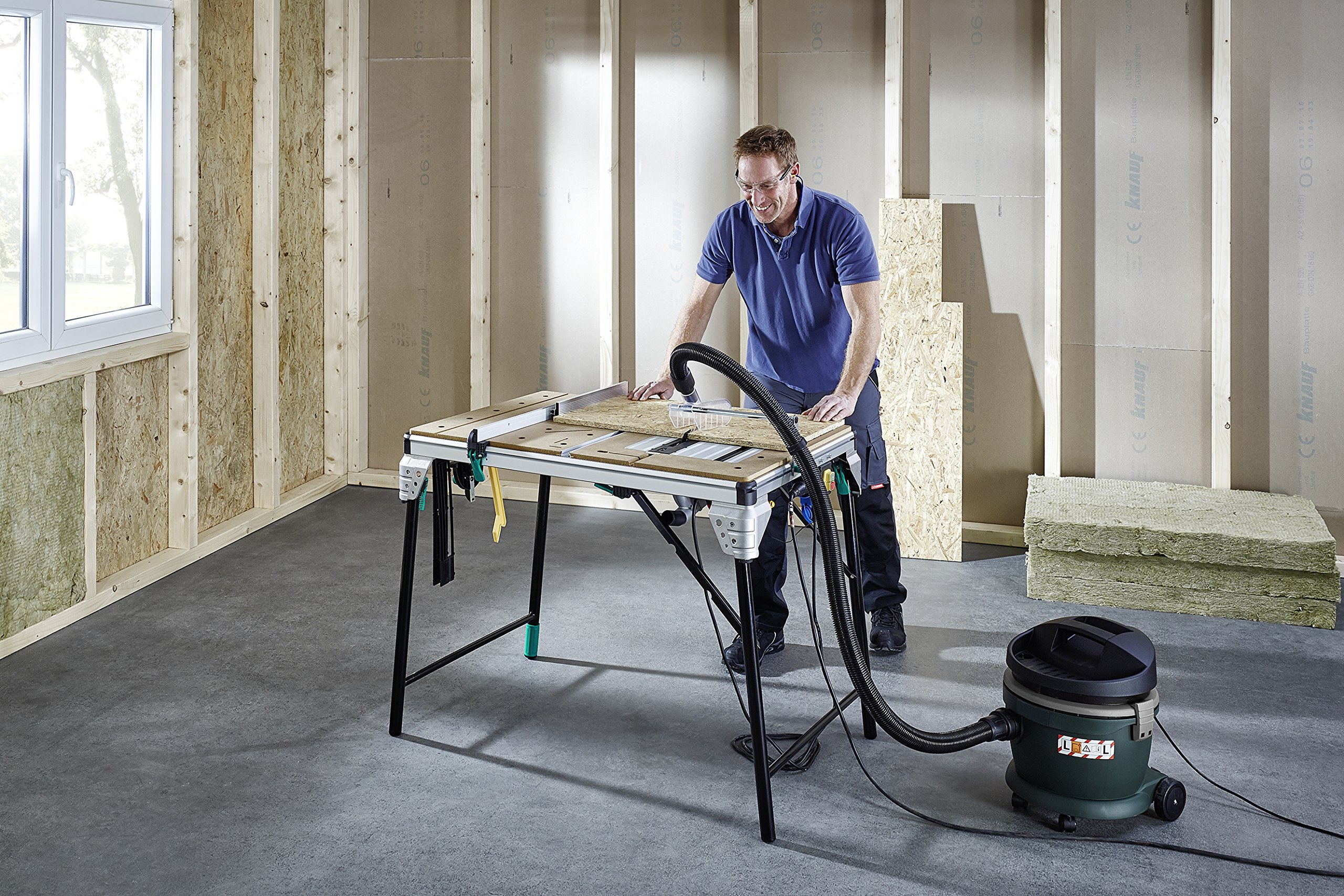

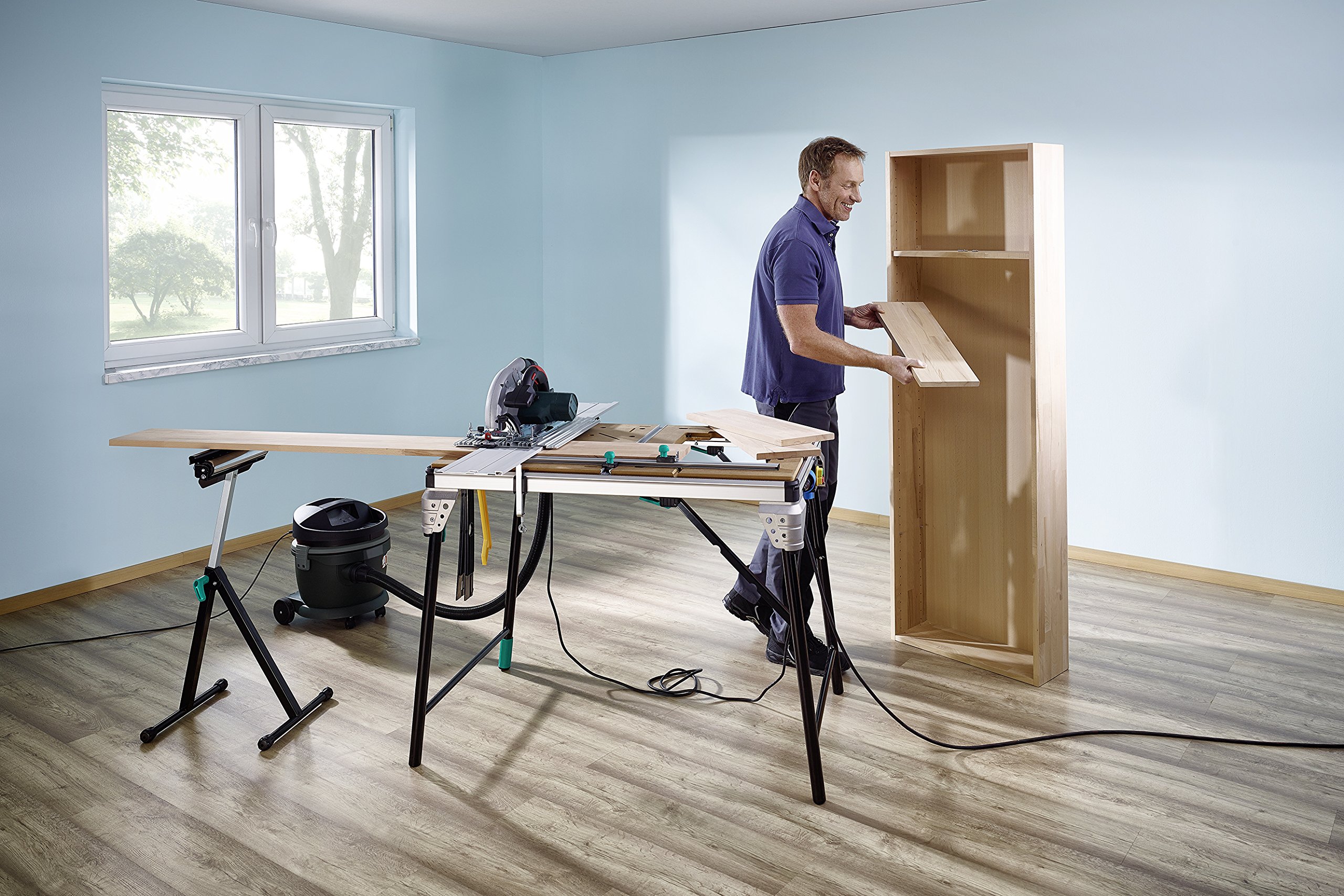

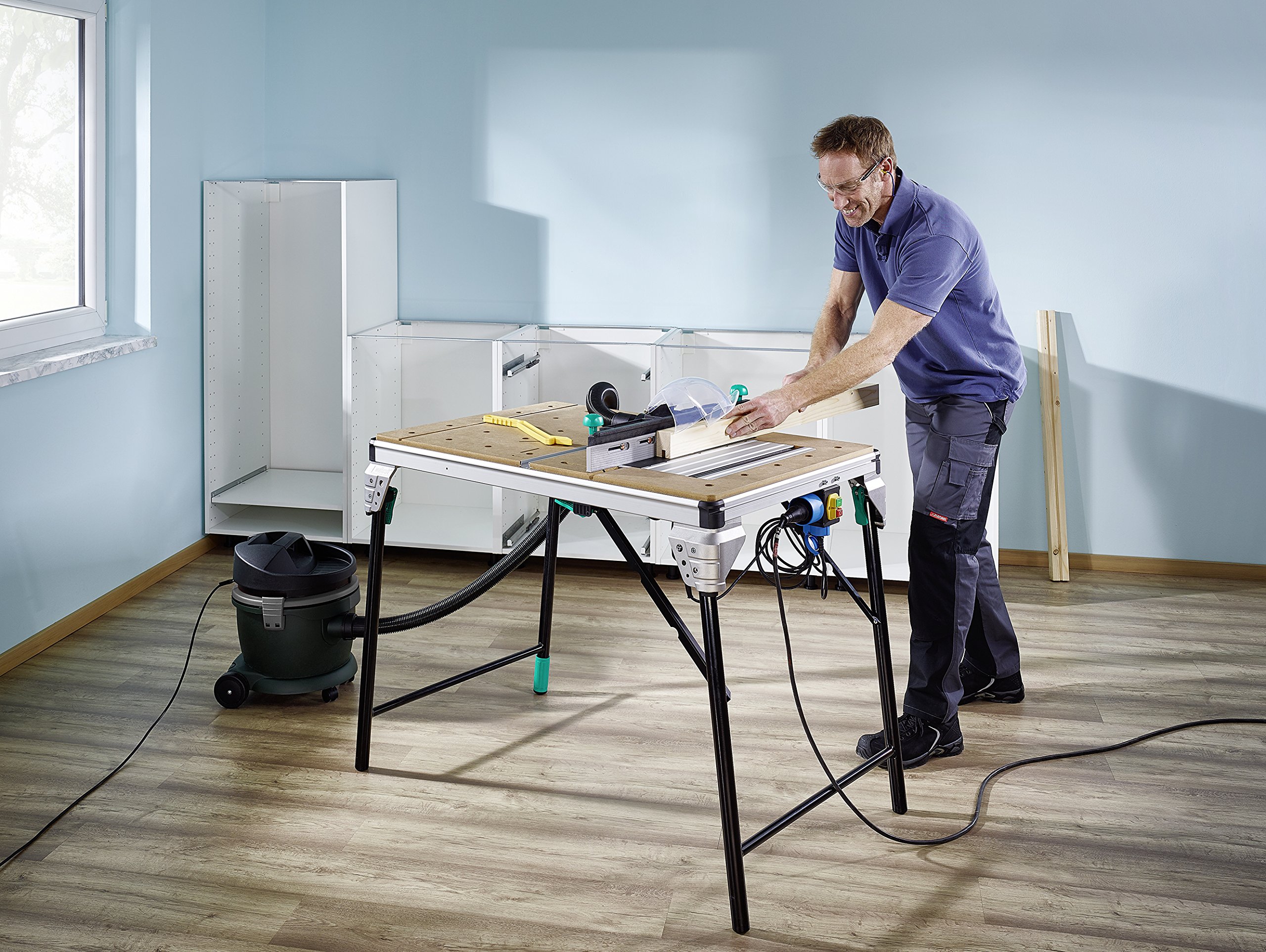

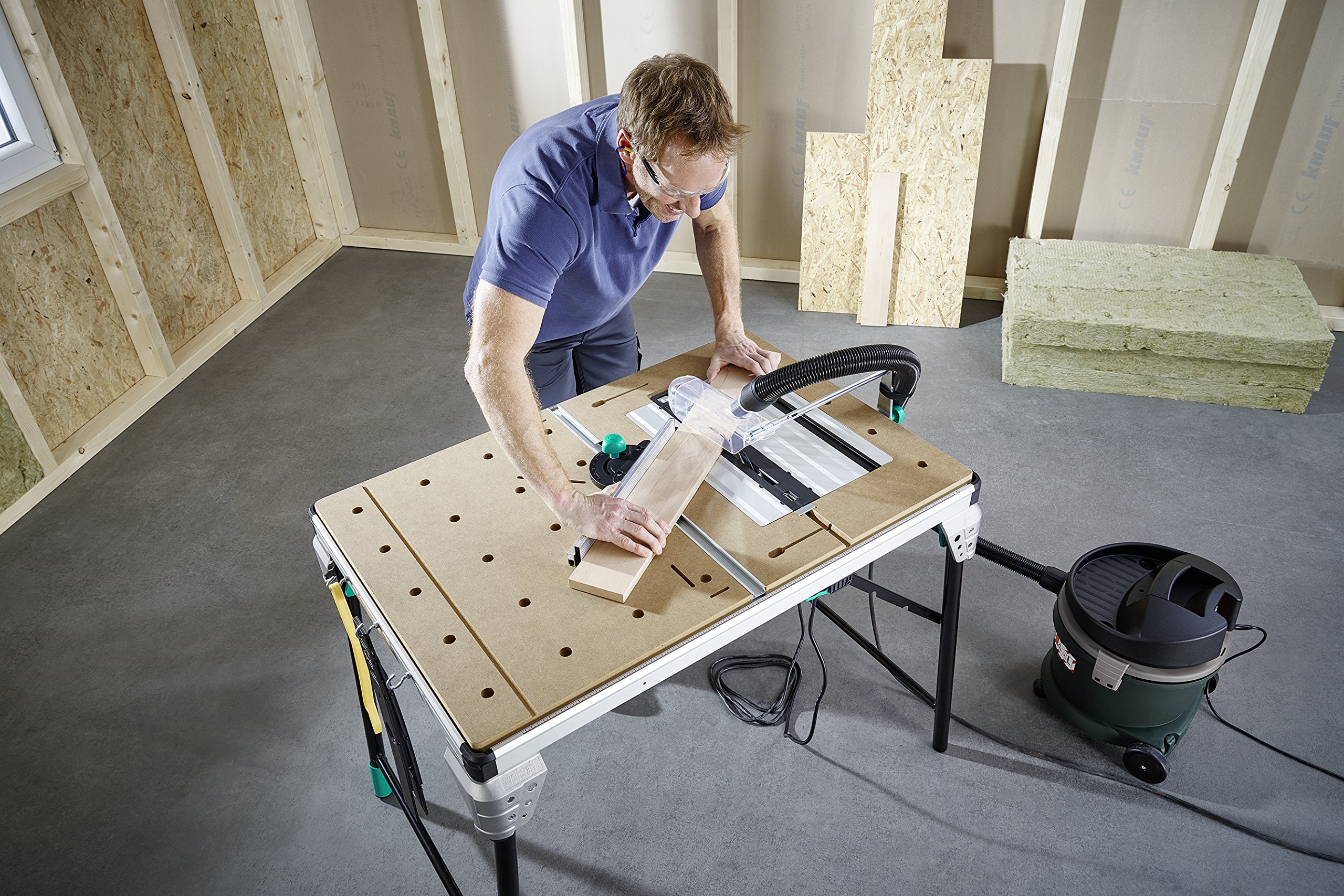

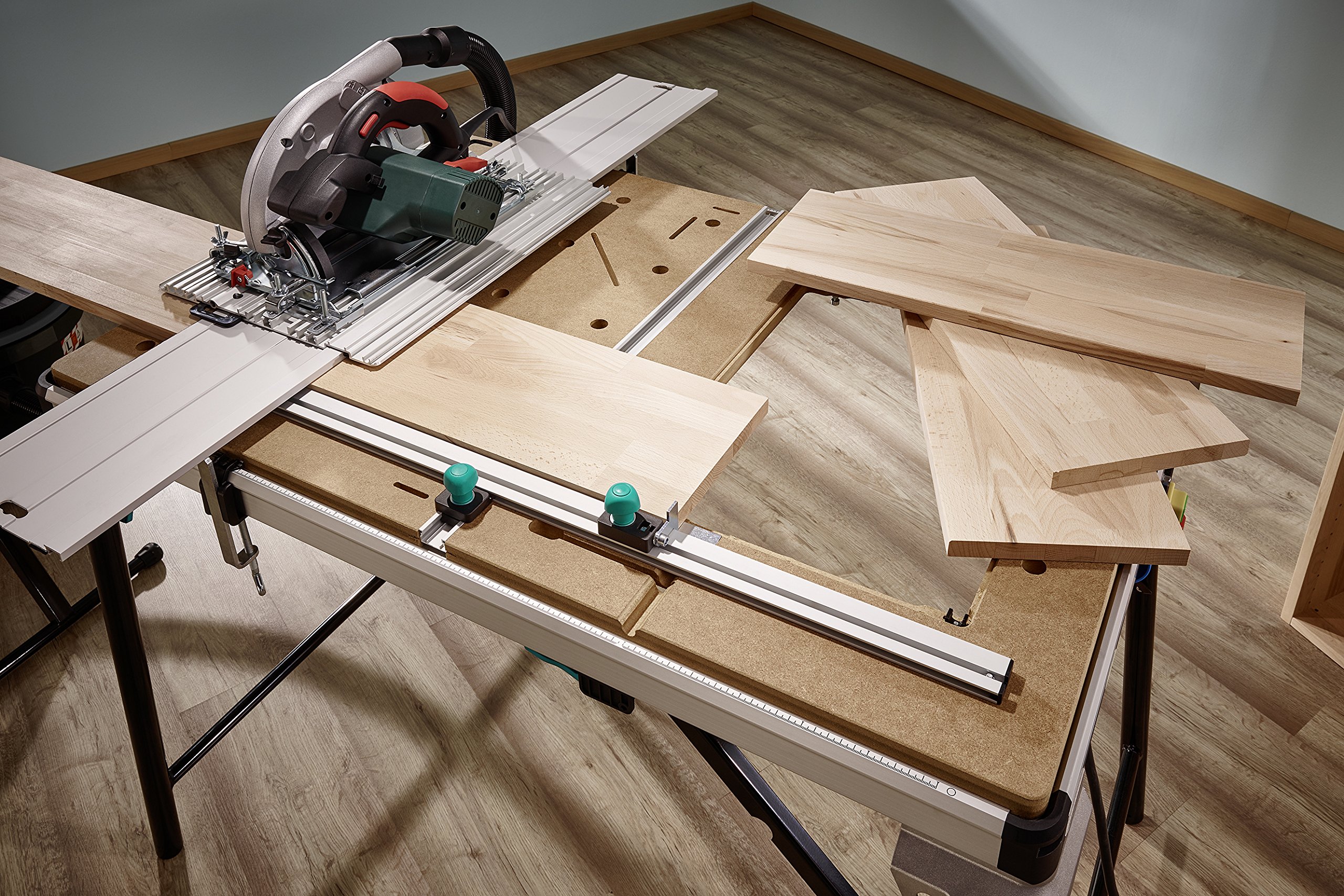

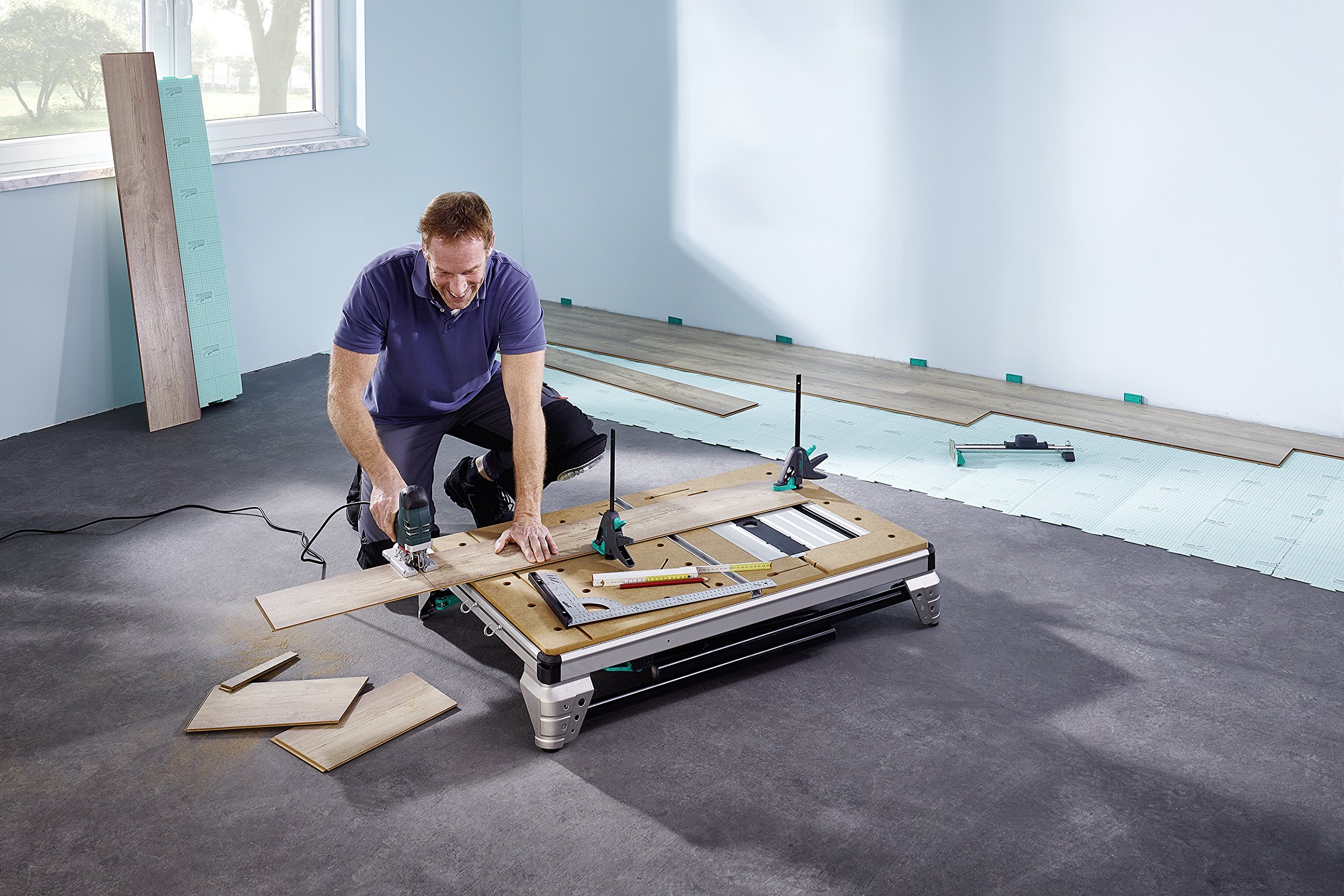

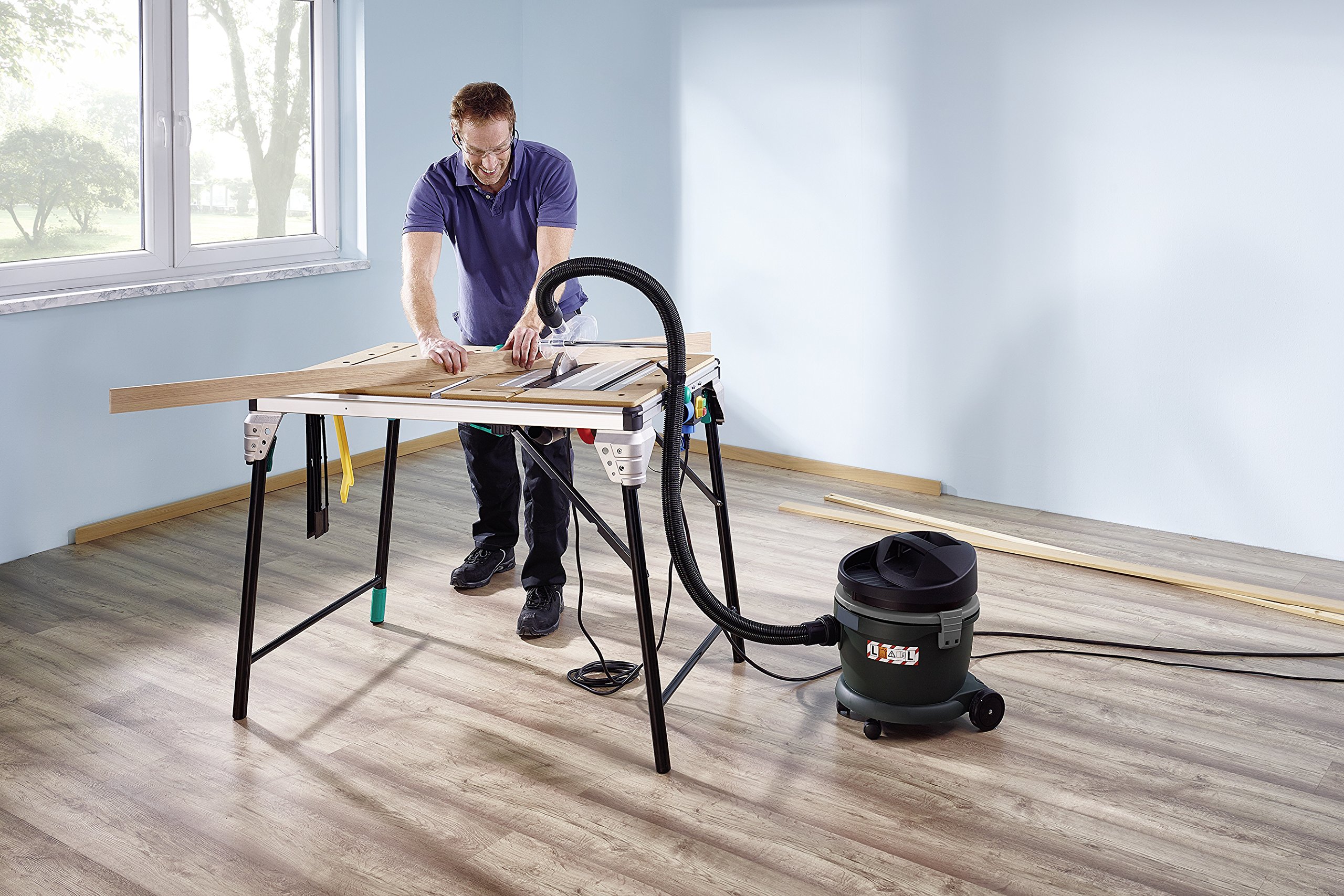

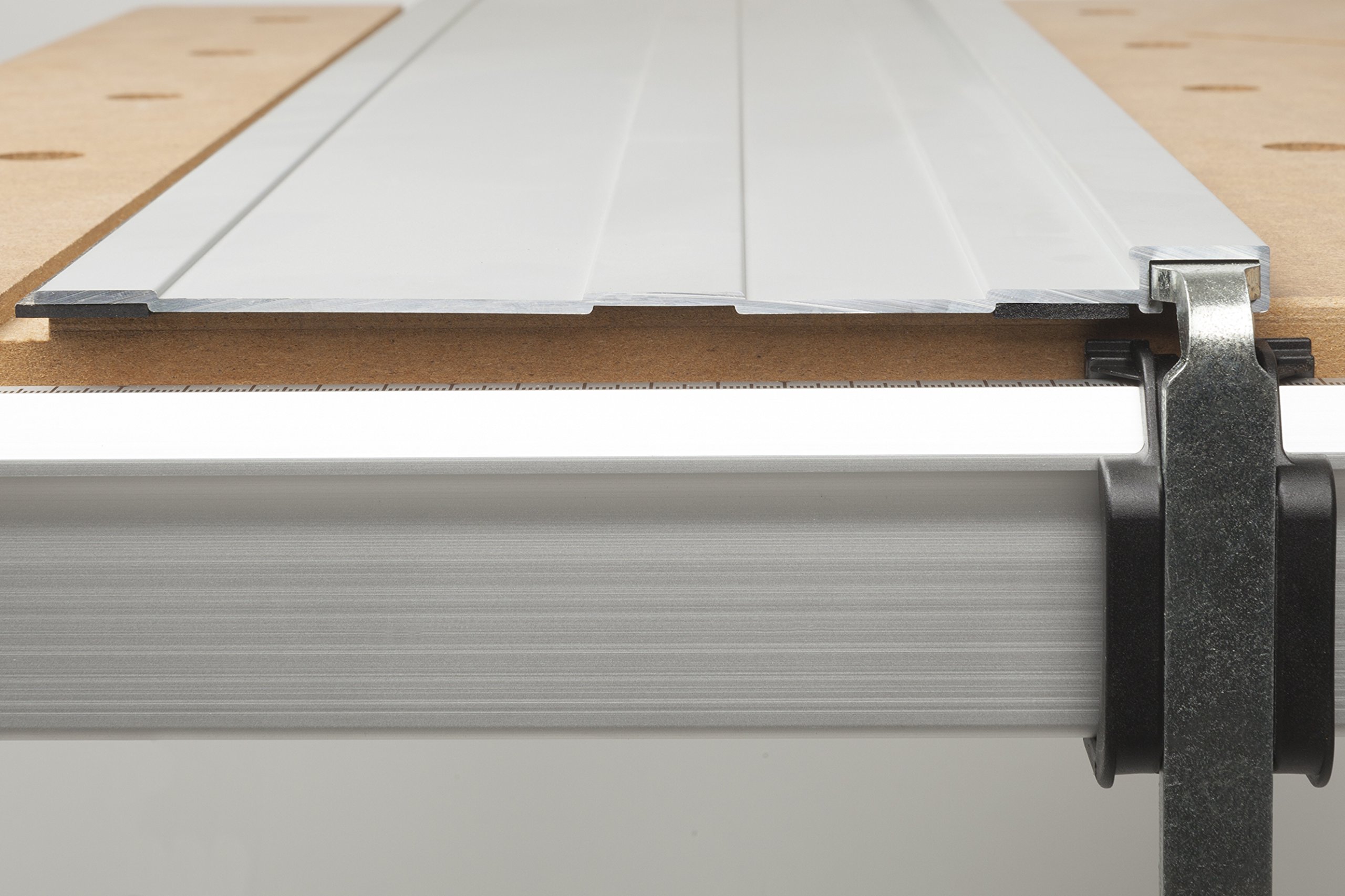

Product description The multifunctional MASTER cut 2500 saw table combines six functions in one product. Since it can be used as a work station, circular saw bench, guided circular saw bench, jigsaw table, mitre saw table and milling table with the optional accessory, the MASTER cut 2500 is ideally suited to all trades involved in interior works. Thanks to the removable riving knife, it is one of the few machine tables that can also be used with circular saws without a riving knife. The machine plate is height-adjustable, offering you a flat transition to the worktop even with heavy machines. When used as a circular saw bench, the parallel stop permits guided cuts up to a cutting width of 570 mm and a cutting length of 740 mm. The angle stop is equipped with spring-guided compensation and gliding elements. It permits a convenient series of angular cuts of up to 120°. The machine table can hold even solid wood boards with ease thanks to its load capacity of 120 kg. Once the work is done, the MASTER cut 2500 can be folded up compactly and stored. With just one product you are reliably and effectively prepared for countless challenges around the home. Properties Circular saw bench function ideal for smaller workpieces that can be pushed across the table parallel cuts up to a cutting width of 570 mm and a cutting length of 740 mm mitre cuts between 0 and 120° thanks to the angle stop special stop guide with spring-guided compensation and gliding elements removable riving knife, ensuring compatibility with machines with and without riving knife Guided circular saw function with wolfcraft guide rail and clamping jaws ideal for sawing big panels and boards thanks to the 80 cm long aluminium stop stop slide for precise repetitive cuts can be set to any angle between 0 and 70° the aluminium machine plate enables a change from circular saw bench to guided sawing with the guide rail in seconds Jigsaw table function ideal for curved cuts unobstructed view of the marked line easy guidance of the workpiece by hand Milling table function accessory - parallel milling stop (art. no. 6901000) turns the MASTER cut 2500 into a real router table height-adjustable drop-in plate for smooth transitions warning: use of the router table is only allowed in combination with the parallel milling guide (art. no. 6901000)! Mitre saw function compatible with all mitre saws thanks to the multifunctional hole pattern in the table plate Mobile work station function the big work surface made of impact resistant MDF offers many clamping possibilities robust and stable thanks to a sturdy base frame and a height-adjustable foot easy transport thanks to the light aluminium construction foldable legs for ergonomic work on the ground mobile: versatile use and space-saving storage robust and stable: stable base frame with a load-bearing capacity of up to 120 kg, height-adjustable foot Technical data Product dimensions (W x D x H) 1,185 x 757 x 863 mm Dimensions of folded product 1,085 x 757 x 213 mm Product weight 24 kg Worktop 1,035 x 695 mm Working height 863 mm Table plate material MDF, aluminium Base frame material Metal Load capacity 120 kg Additional product specification max. height of the work piece for the circular saw bench and guided circular saw functions: 60 mm max. cutting width with parallel stop as table saw: 570 mm max. cutting length with guide bar: 740 mm diameter of clamping holes 20 mm in accordance with DIN EN 62841 Machine area of working tables for circular hand saws with riving knife, up to a maximum cutting depth of 70 mm, saw blade diameter of 200 mm and the specified maximum base plate dimensions (see pictogram); must only be used with appropriate knife insert! circular hand saws that do not have a riving knife can only be used in combination with riving knife art. no. 6916000 (up to max. 160 mm blade diameter) or riving knife art. no. 6917000 (from 161 up to max. 200 mm blade diameter). for routers with max. 230 V, max. 1800 W, maximum base plate diameter: 170 mm; maximum base plate height: 20 mm; for maximum router diameters of 27 mm; must only be used with parallel milling stop (art. 6901000)! for all jigsaws Instructions Cordless power tools must not be installed in the MASTER cut, as they cannot be connected to the safety switch. Scope of delivery 1 MASTER cut 2500 Saw Table and Work Station 1 switch clamp 1 push stick 1 safety shield 1 EU safety switch 4 clamping jaws 3 knife inserts for circular hand saws and routers 1 guide rail 1150 mm 1 15 mm insert ring for router 1 25 mm insert ring for router 2 angle stops 1 parallel stop Shops Article number Contents Safety switch variant EAN 6902000 1 with safety switch (EU version) 4006885690202 6902506 1 with safety switch (GB/IRL version) 4006885690257 6902612 1 with safety switch (CH version) 4006885690264 ID Name 115960162 Clamping piece 6911 115980437 Eccentric lever and bolt 6900, 6902, 6907, 6909, 6918 115980468 Clamp assembly group 6900 115980493 EU safety switch (from 03.2012), old no. 117920072 115980715 MDF worktop 6902 115980718 Table leg bracket 1, 6902, 6909, 6918 115980719 Table leg bracket 2, 6902, 6909, 6918 115980720 Lamellar plug assembly group with rubber pad 6902, 6909, 6918 115980722 Safety shield clip AG 6902, 6907, 6918 115980724 Angle stop assembly group 6902 / 6165 115980725 Parallel stop holder assembly group, Right 6902, 6907, 6918 115980726 Parallel stop holder assembly group, left 6902, 6907, 6918 115980727 Guide rail assembly group 6902 115980763 Machine plate assembly group 6902 115980764 Fastening assembly group for machine plate 6902 115980765 Height-adjustable foot assembly group 6902, 6907, 6909, 6918 115980766 Worktop assembly group for machine table 6900, 6902 115980767 Stop rail assembly group 6902, 6918 115980768 Parallel stop assembly group 6902, 6907, 6918 (old no. 119800025) 116106902 Packaging, base 1147x769.5x205mm, 6902, 6909, 6918 116116902 Packaging, cover 1178x781x204 mm 6902 116306902 Manual 6902 116410114 Sliding stop 6902, 6918 116610180 Safety shield 6165, 6900 - 6918 116610272 Push stick 6165, 6830, 6900, 6907, 6918 116610273 Switch clamp for circular hand saws (old no. 116620100) 116610635 Install.foot, rubber pad 6902,6909,6918 116620528 Split insert, circular hand saw FS 6902 116620529 Split insert, router 6902, 6907, 6918 116620530 Split insert, circular handsaw 6900, 6902, 6907, 6918 116710193 Set screw M6x6, DIN 913 6911 117920043 Safety switch, CH version; for machine tables 117920073 Safety switch, GB, IRL version; for machine tables 119916902 Accessory bag 1, 6900, 6902, 6907, 6918 (old no. 119906900) 119926902 Accessory bag 2, 6902 119936902 Accessory bag 3, 6871 / 6902 / 6909 / 6918 119946902 Accessory bag 4 6902
